Toknav GNSS Receivers

Professional Toknav GNSS receivers for RTK surveying, CORS reference stations, construction layout, mapping, monitoring, laser measurement, AR stakeout, and photogrammetry workflows.

  • BrandToknav
  • Products11
  • AgentEnmatech
Toknav GNSS solutions

Product Guide Built From The Local Catalogs

The GNSS receiver family covers compact rover kits, long-endurance base station receivers, photogrammetric RTK, laser RTK, and fixed CORS infrastructure. The local catalogs reference multi-constellation full-frequency tracking, 1408 channels on professional models, Linux intelligent systems, IMU tilt workflows, AR stakeout, and rugged IP-rated field bodies.

Each product below connects the page content to the matching local catalog, user guide, image, or video stored in the website assets. Technical details should always be confirmed against the attached manufacturer PDF before procurement.

Project Support

  • Model selection and configuration review.
  • Catalog, user-guide, and accessory planning.
  • Setup, handover, and operator orientation.

Products And Details

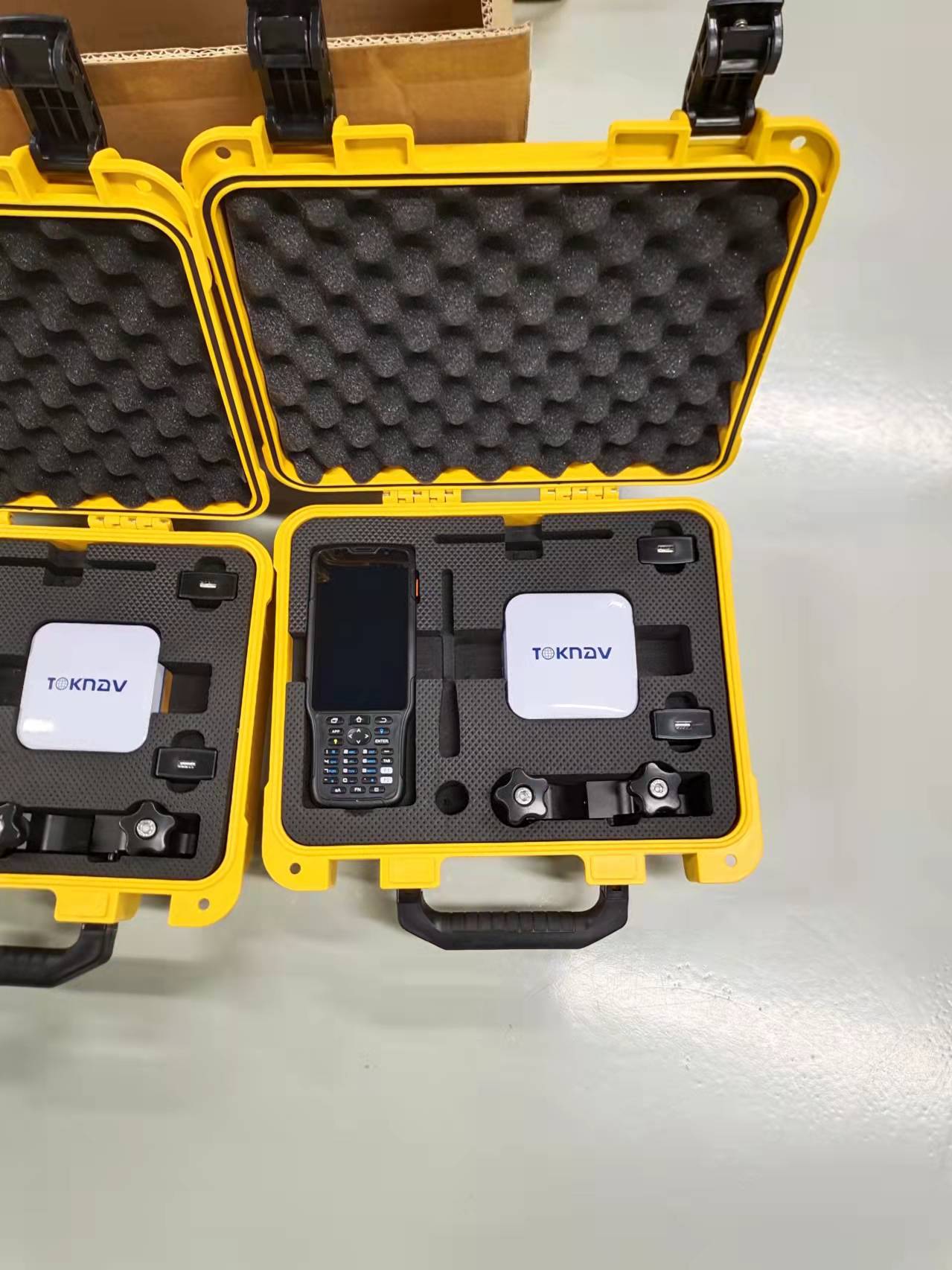

T5Lite GNSS Receiver

T5Lite GNSS Receiver

Compact entry GNSS receiver for lightweight RTK field work where portability and cost control matter.

  • Mini portable receiver for mapping and survey teams.
  • Designed for base/rover and network RTK workflows.
  • Catalog family references full-system GNSS tracking and field-ready accessories.

Source: GNSS Receiver catalog and T5Lite user guide.

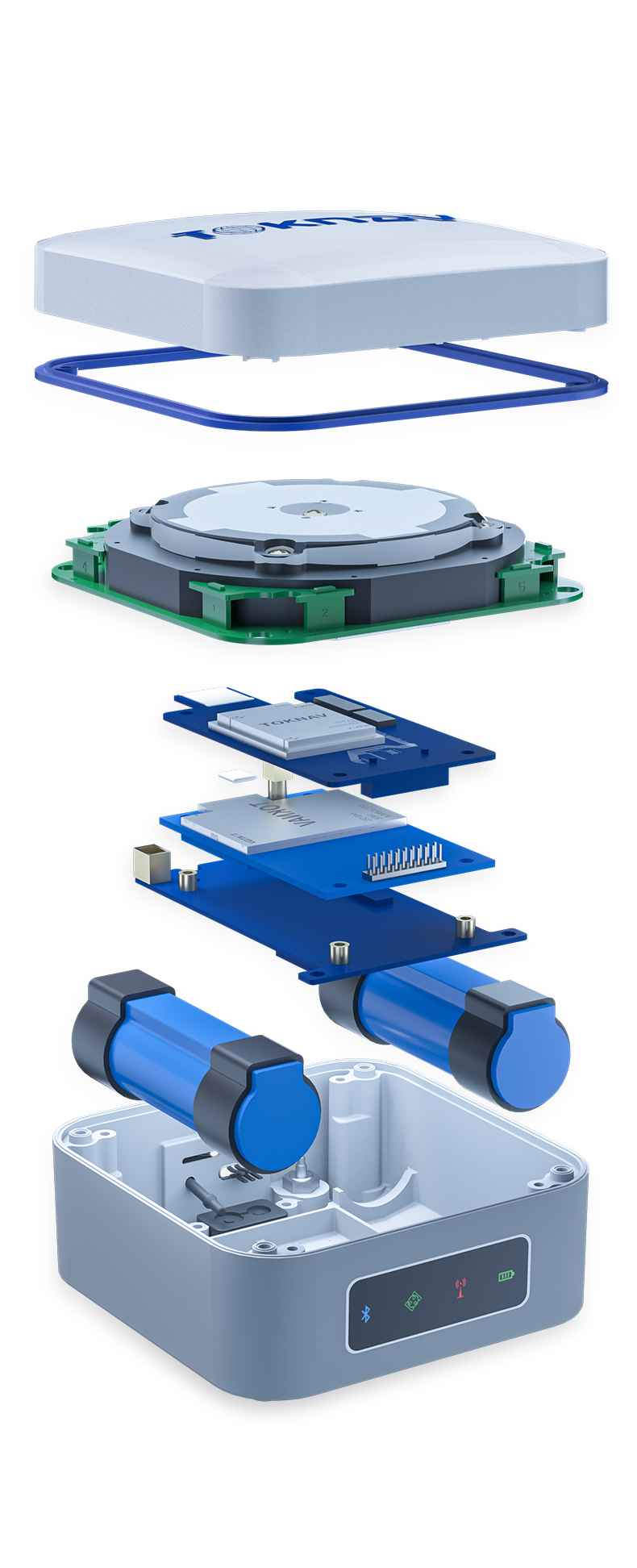

T5 GNSS Receiver

T5 GNSS Receiver

Portable T5 receiver for everyday survey, stakeout, and positioning work.

  • Useful for crews that need a small RTK rover.
  • Supports practical field surveying and mapping workflows.
  • Pairs with Toknav controller, pole, charger, and antenna accessories.

Source: GNSS Receiver catalog and T5 user guide.

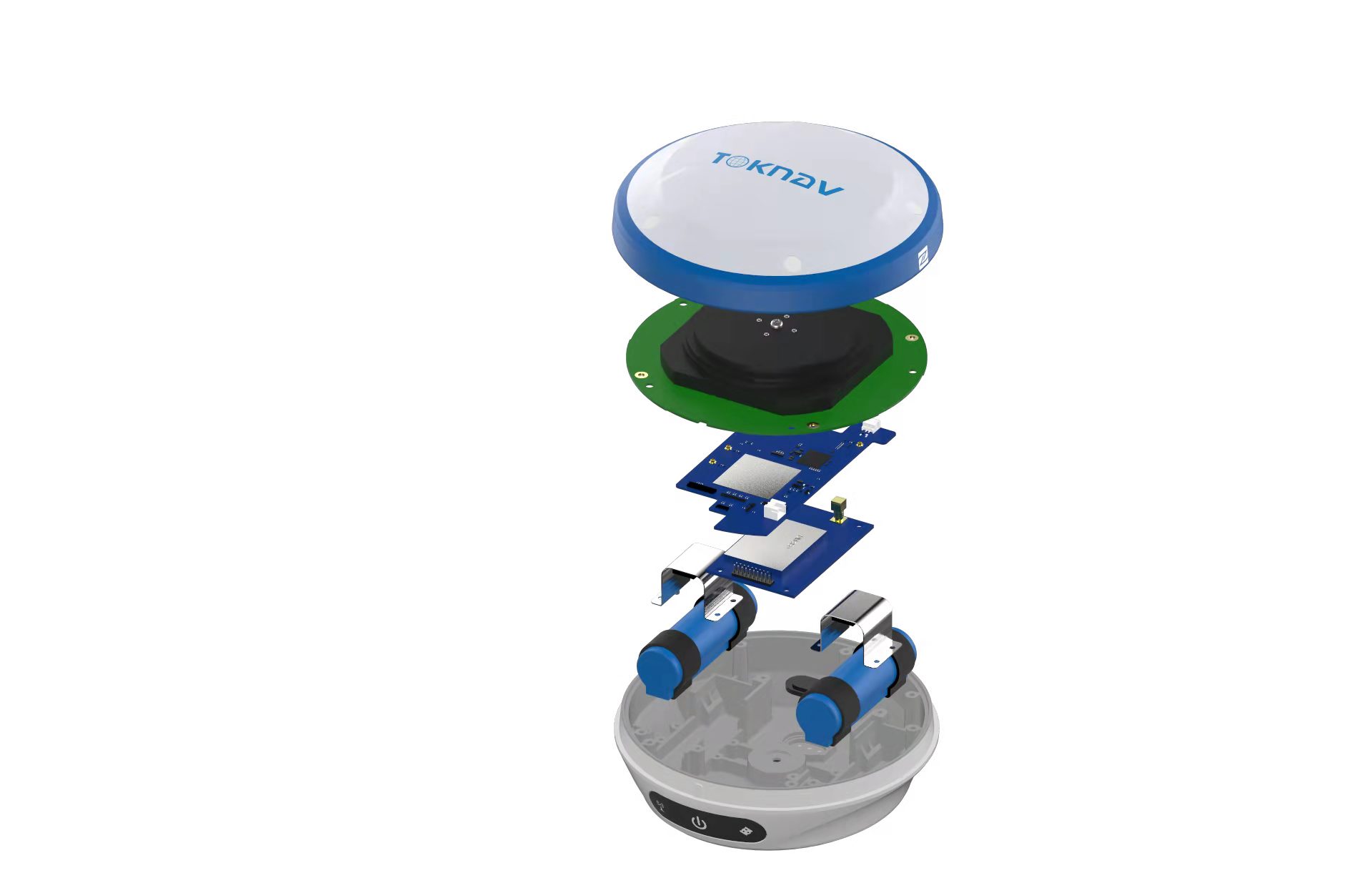

T10Pro GNSS Receiver

T10Pro GNSS Receiver

Professional RTK receiver for survey crews that need stronger communication and field flexibility.

  • Multi-constellation GNSS positioning for RTK work.
  • Used for mapping, construction layout, topographic survey, and stakeout.
  • Local assets include catalog, user guide, and base/rover product images.

Source: T10Pro GNSS receiver catalog and user guide.

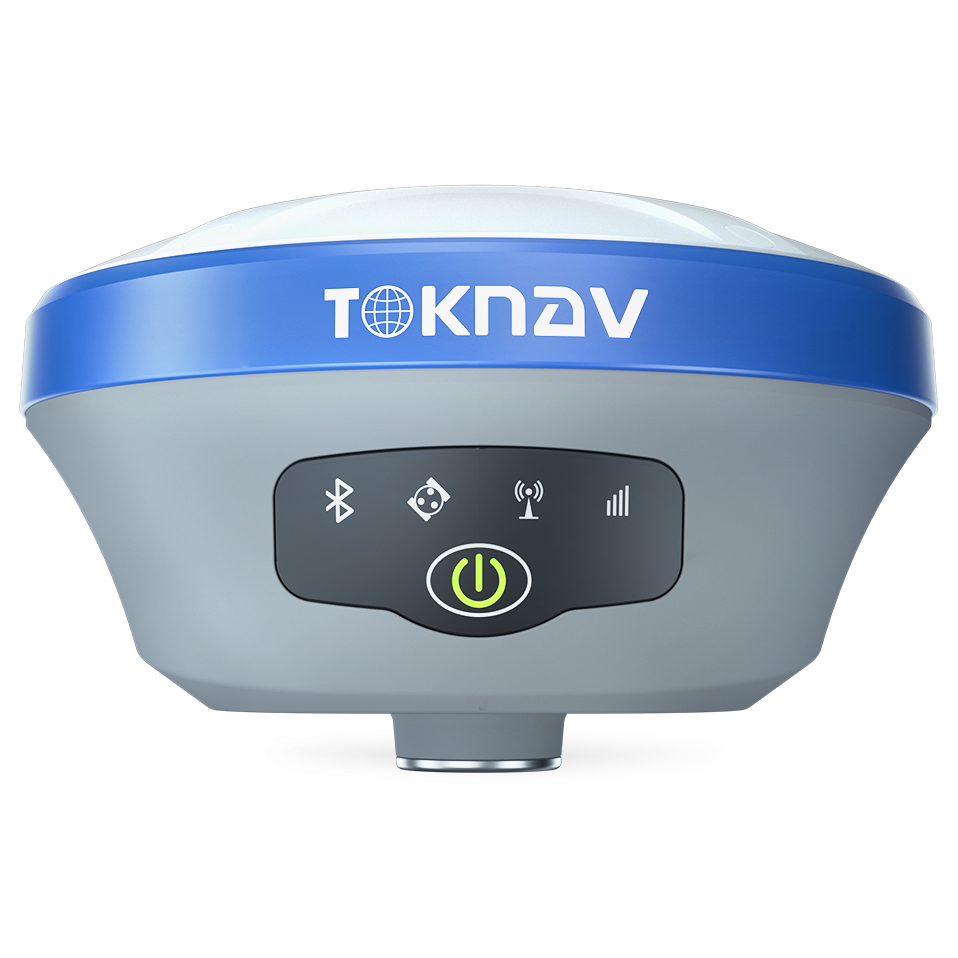

T20 GNSS Receiver

T20 GNSS Receiver

T20 receiver for professional RTK positioning and daily survey field operations.

  • Built for rover and base work with Toknav field software.
  • Supports construction, mapping, and control survey use cases.
  • Dedicated catalog and user guide are available in the local product folder.

Source: T20 GNSS Receiver catalog and user guide.

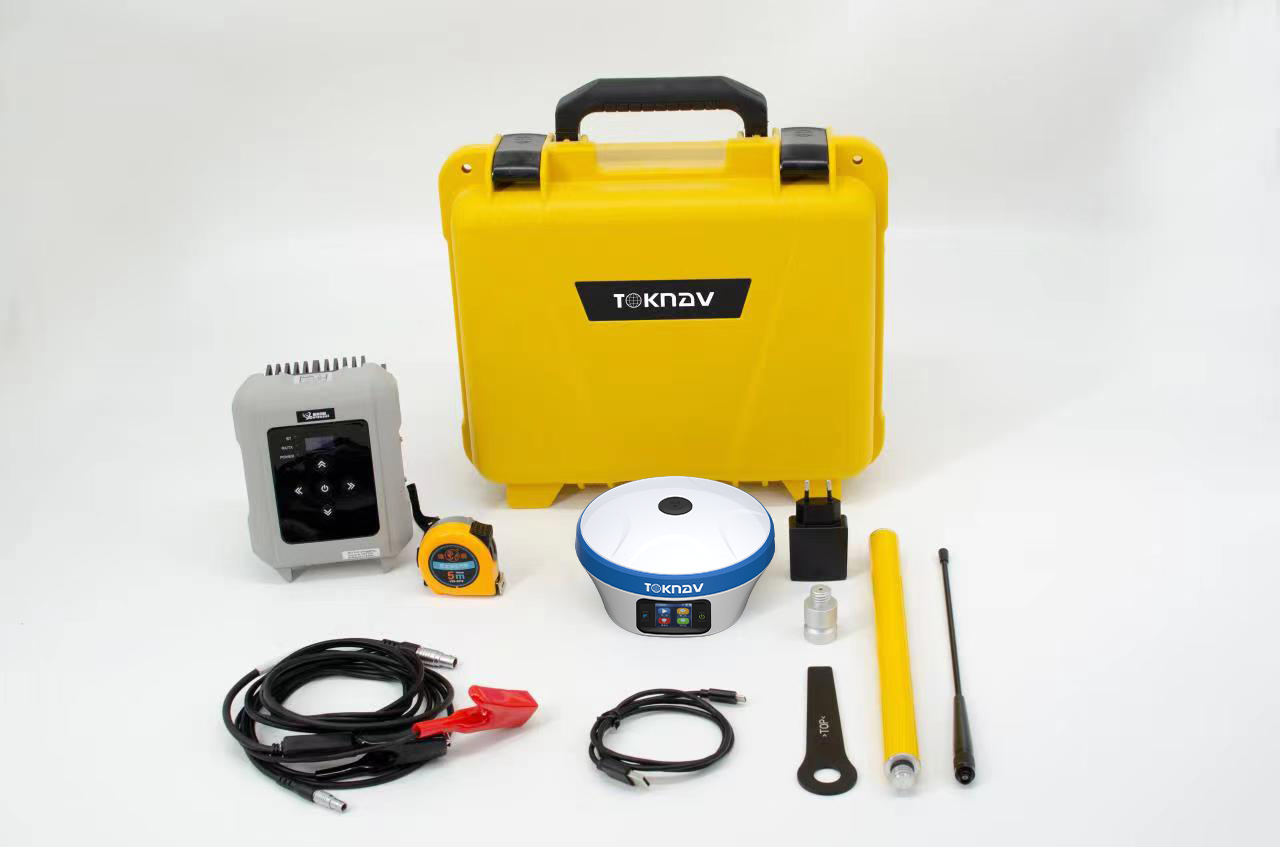

T20Pro GNSS Receiver

T20Pro GNSS Receiver

Multifunction professional receiver for RTK projects that need stronger base/rover communication options.

  • Catalog family references 1408 channels on professional receiver lines.
  • Suitable for network RTK, radio correction, and site layout workflows.
  • Includes local catalog, user guide, and product imagery.

Source: T20Pro GNSS Receiver catalog and user guide.

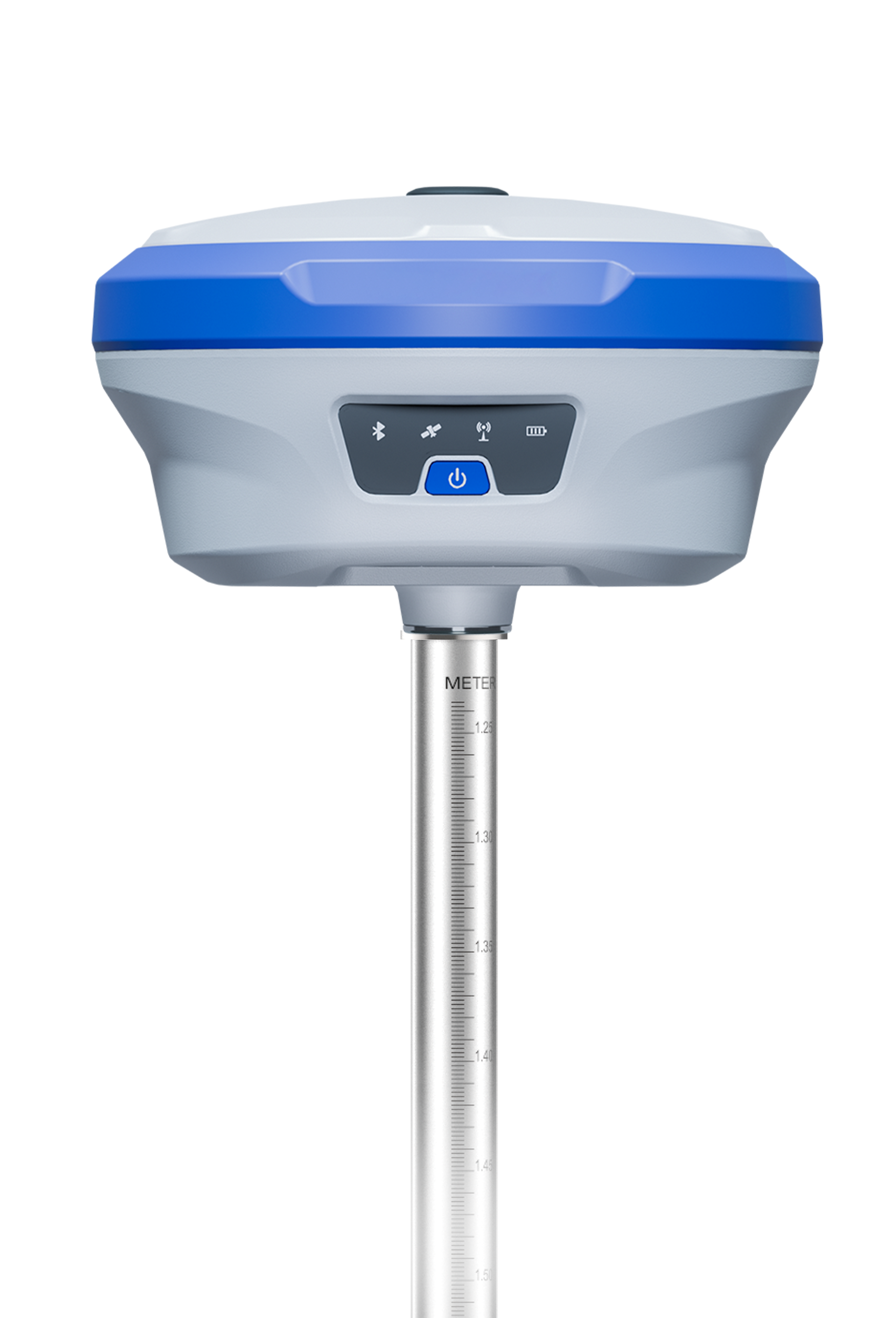

tBase GNSS Receiver

tBase GNSS Receiver

Professional base station receiver designed for concurrent correction links and long base operation.

  • 1408 channels with BDS, GPS, GLONASS, Galileo, QZSS, SBAS, and supported NavIC signals.
  • Built-in 5W radio and 13800mAh battery; catalog references operation over 15 km and up to 15 hours.
  • 4G, Bluetooth, WiFi, radio, and remote VPN management support.

Source: tBase GNSS Receiver catalog.

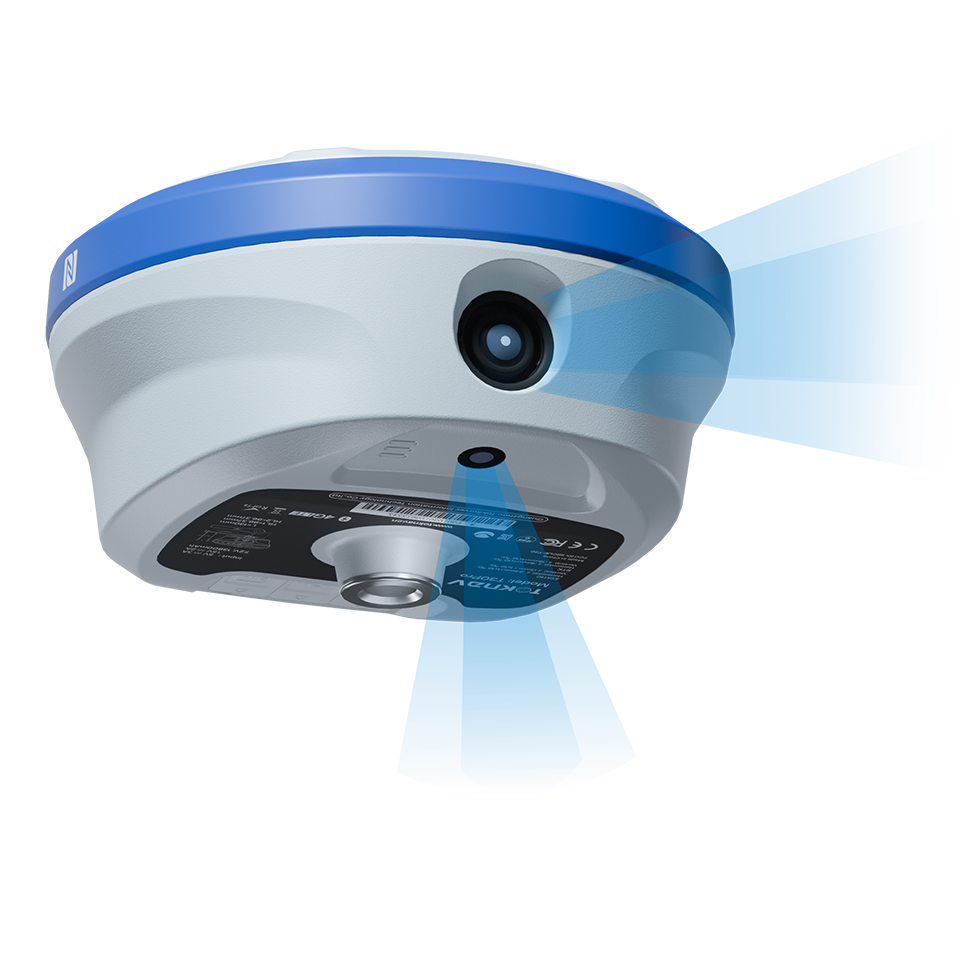

T30 GNSS Receiver

T30 GNSS Receiver

High-end RTK receiver with strong endurance, multi-frequency tracking, and laser tilt measurement support.

  • ARM Cortex-A7 Linux platform and 1408 GNSS channels.
  • RTK accuracy listed as horizontal +/-(8 mm + 1 ppm) and vertical +/-(15 mm + 1 ppm).
  • 13800mAh battery, IP68 protection, 1.5 m drop resistance, and 48+ hour rover-mode endurance.

Source: T30 GNSS Receiver catalog.

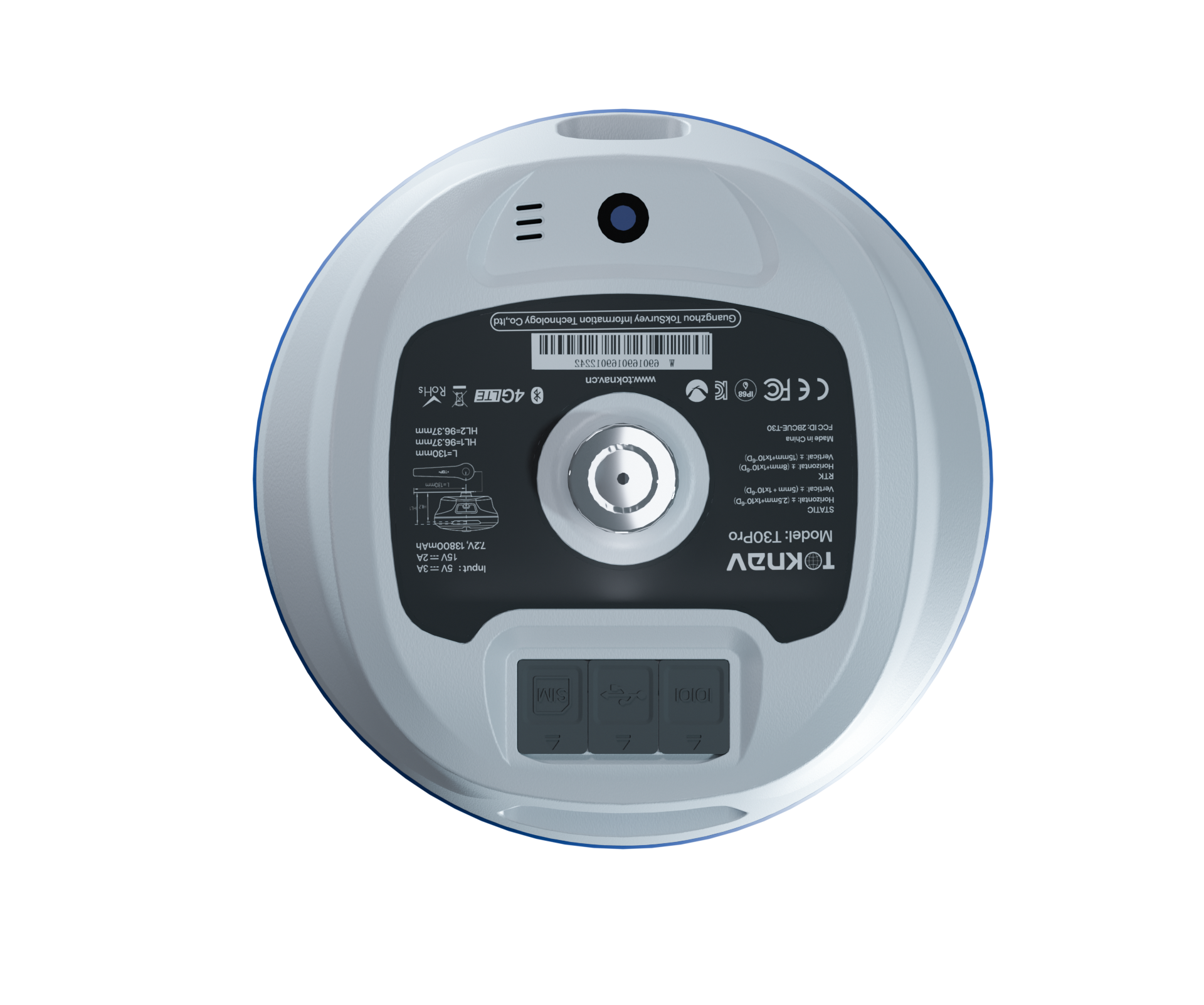

T30Pro GNSS Receiver

T30Pro GNSS Receiver

T30Pro adds image survey and AR real-scene stakeout to the T30 professional GNSS platform.

  • 1408 channels, Linux platform, 4G, Bluetooth, WiFi, and integrated radio.
  • IS camera for image survey and AR camera for real scene stakeout.
  • IP68 body, 13800mAh battery, and tilt correction within 60 degrees.

Source: T30Pro GNSS Receiver catalog.

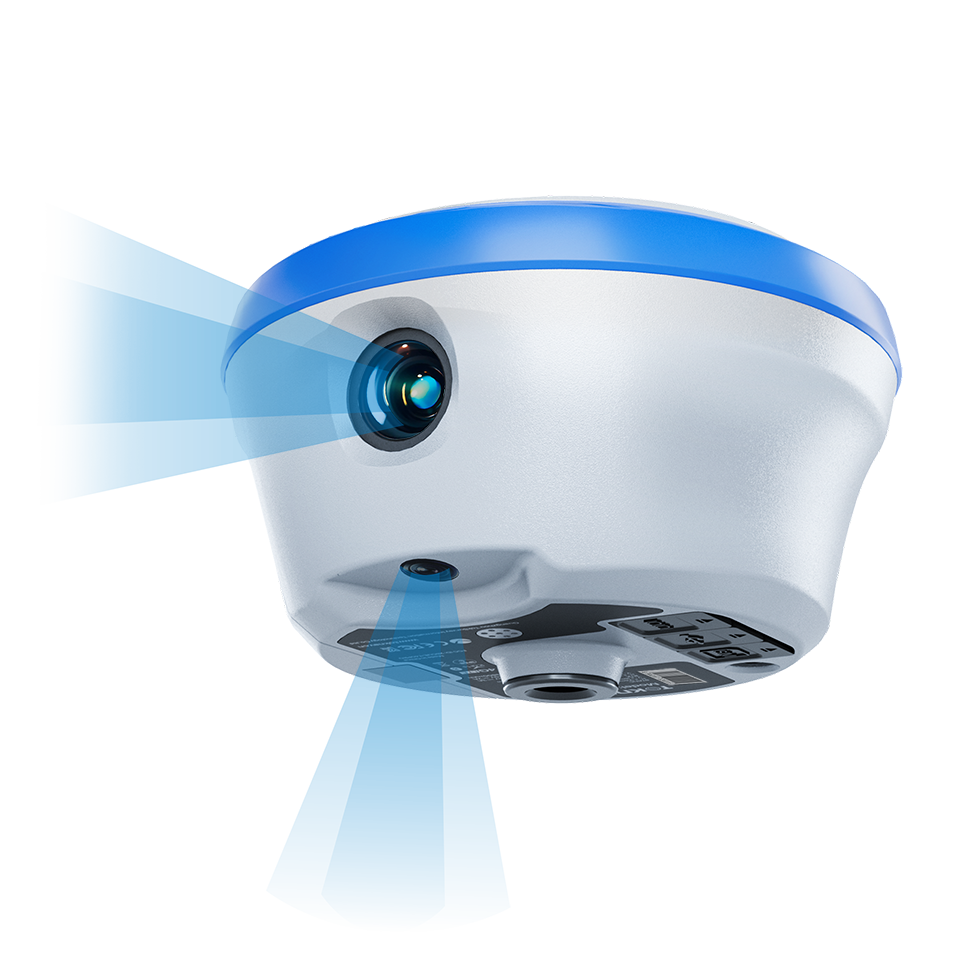

T40Pro GNSS Receiver

T40Pro GNSS Receiver

Photogrammetric RTK receiver with IMU, AR stakeout, image survey, and hot-swappable batteries.

  • 1408-channel full-system GNSS receiver with Linux intelligent system.
  • Photogrammetry error noted as 2-4 cm within 2-15 m.
  • Dual removable batteries, IP68 design, and more than 20 hours listed endurance.

Source: T40Pro specification.

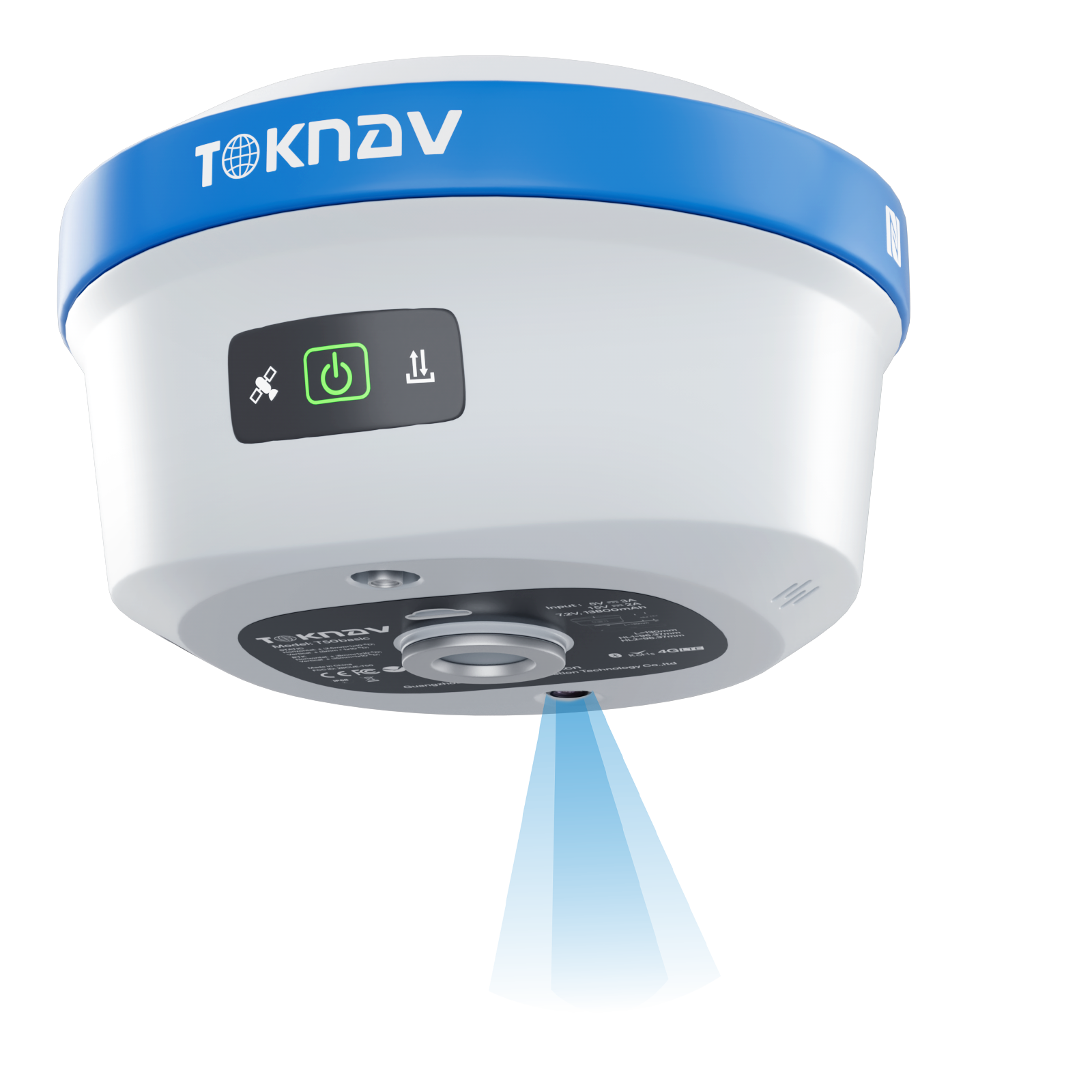

T50 GNSS Receiver

T50 GNSS Receiver

Palm-sized laser RTK receiver for fast measurement where direct pole access is difficult.

  • 1408 channels with full-system GNSS reception.
  • Laser measurement with 3D error within 5 m listed at about 2.5 cm.
  • 770 g body, 6500mAh battery, over 16 hours rover endurance, AR stakeout, and IP68 design.

Source: T50 GNSS Receiver catalog.

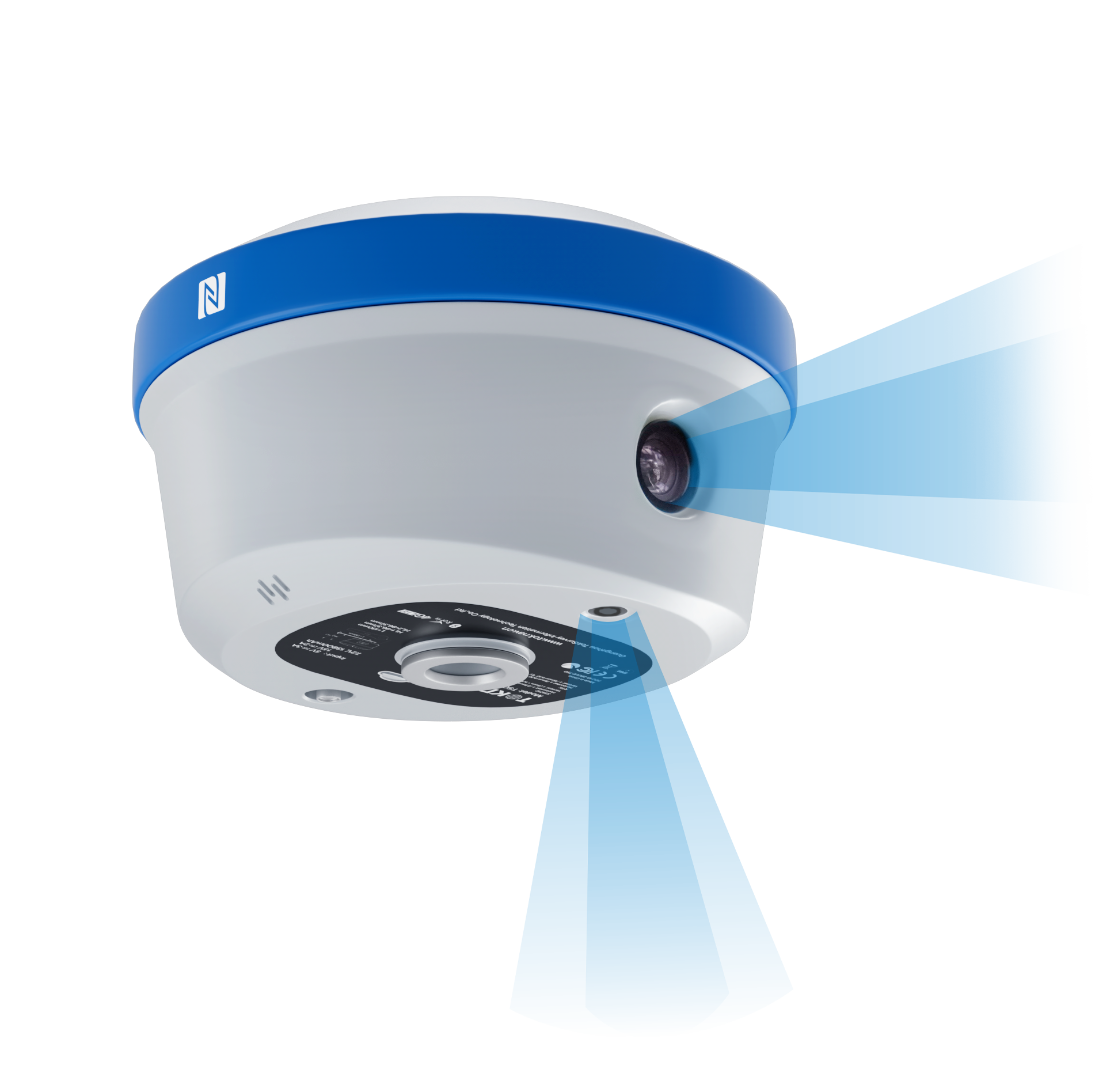

T50Pro GNSS Receiver

T50Pro GNSS Receiver

Palm-sized photogrammetry RTK receiver for image measurement, AR stakeout, and compact professional survey workflows.

  • Photogrammetric results in 1 second with 2-4 cm error within 2-15 m.
  • 1408 channels, 4G, Bluetooth, WiFi, radio, IMU, and AR real-time stakeout.
  • 770 g body, 6500mAh battery, over 16 hours rover endurance.

Source: T50Pro catalog.

Need a Toknav GNSS configuration?

Send the project scope, accuracy target, correction method, and site environment. Enmatech Global will help match the correct receiver, antenna, controller, software, and accessories.
