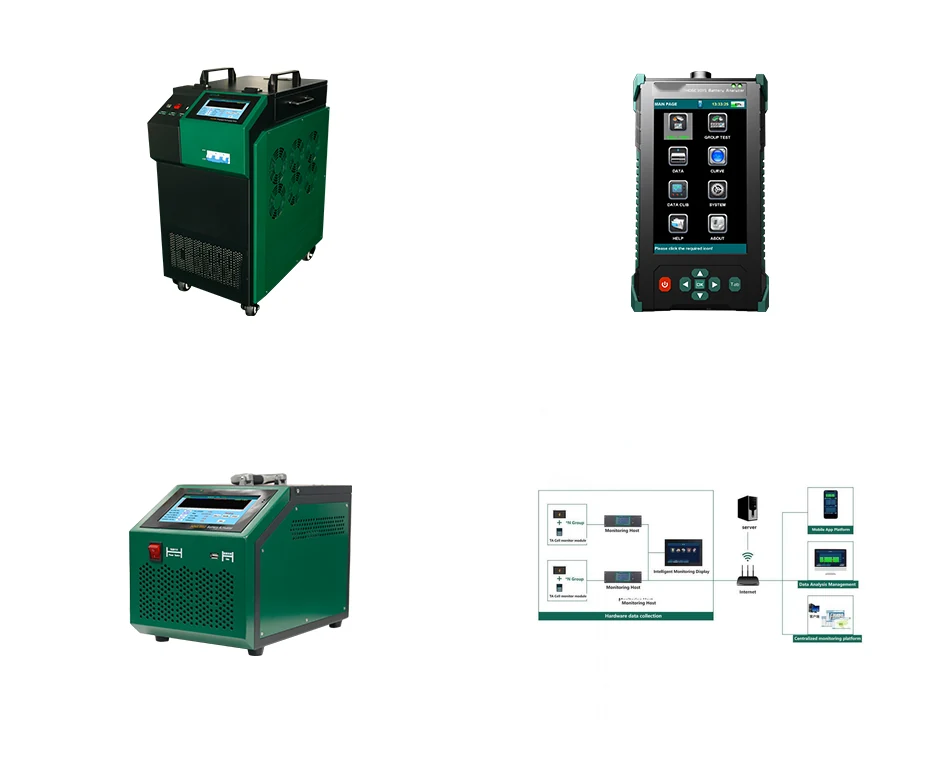

Lead Acid Battery Tester Series

Analyzers, discharge and load testers, activators, chargers, capacity testers, charge/discharge testers and online monitoring systems for VRLA and flooded lead-acid battery banks in telecom sites, UPS rooms, substations, power plants and data centers.

Browse Products Request a Quote

Products29
Categories7
SupportSupply & Training

Overview

Categories in this series

Battery Analyzer Battery Discharging Tester Battery Activator Battery Charger Battery Capacity Tester Battery Charge Discharge Tester Battery Online Monitor System

Typical Applications

Telecom base stations and backup power rooms
UPS battery banks in data centers and hospitals
Substation and power plant DC systems
Rail transport and hydroelectric stations

Battery Analyzer

Handheld analyzers that measure internal resistance, conductance and voltage for rapid capacity screening of lead-acid cells.

1 product

Battery Analyzer (Rapid capacity test) – Model 3915

3915 handheld battery internal resistance tester adopts advanced AC discharge test method to accurately measure the battery voltage and internal resistance, and in this way to determine the battery capacity and technical status of the battery.

Conductance20～19,990S
Internal Resistance0.01mΩ-120mΩ
Voltage1.000v–25v
Power Supply5V, Recharge lithium battery

Request a Quote

Description

To realize the internal resistance matching during replacing battery, it is very important to do testing before & after replacing new battery. Battery internal resistance used to identify the real backward battery; key operation and LCD touch two kinds of operation mode; it can be both the battery group measurement, but also can be measured in a single section. Applicable to battery manufacturers, base station operation and maintenance, data centers, substation maintenance.

Parameters

Measurement Range
Conductance	20～19,990S
Internal Resistance	0.01mΩ-120mΩ
Voltage	1.000v–25v
Min Measurement resolution
Conductance	1S
Internal Resistance	0.01mΩ
Voltage	1mV
Measurement Accuracy
Conductance	±0.5%rdg ±6dgt
Internal Resistance	±0.5%rdg ±6dgt
Voltage	±0.2%rdg ±6dgt
Working Power Supply
Power Supply	5V, Recharge lithium battery
Power consumption	Continuous working for 10 hours
Mechanical Character
Storage	Internal 32G TF storage, external 32G micro-USB card reader
LCD Display	800*480 Colorful , 5 inch colorful touch screen
Size	17110035mm
Weight	0.45Kg

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Discharging Tester

Constant-current and constant-power discharge testers for accurate capacity verification of DC battery banks from 10V to 600V.

9 products

Battery Discharging Tester (Accurate capacity test) – Model 3980

3980 series battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A
Data communicationRS485、USB

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

3980 Battery Discharging tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32～60V	88～132V	176~270V	300～460V	380～580V
Discharge current	0~300A	0~100A	0~100A	0~40A	0~30A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

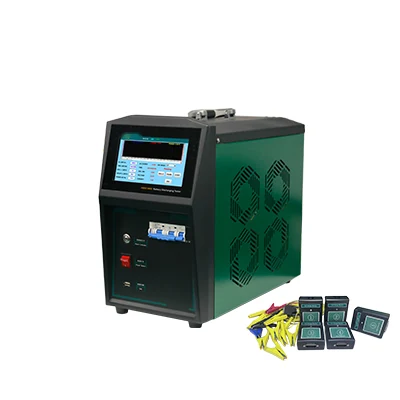

Battery Load Tester – Model 3982

3982 battery discharging tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A
Data communicationRS485、USB

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

3982 Battery Discharging tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32～60V	88～132V	176~270V	300～460V	380～580V
Discharge current	0~300A	0~100A	0~100A	0~40A	0~30A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

48V Battery Discharge Tester

DC 48V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Discharge voltage range38~57V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC48V Battery Discharging tester
Type: 3980-	H804805	H804810	H804815	H804820	H804830
Discharge voltage range	38~57V
Discharge current	0-50A	0-100A	0-150A	0-200A	0-300A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

220V Battery Discharging Tester

DC 220V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Discharge voltage range176~264V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC 220V Battery Discharging tester
Type: 3980-	H802203	H802206	H802210	H802220	H802230
Discharge voltage range	176~264V
Discharge current	0-30A	0-60A	0-100A	0-200A	0-300A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

110V / 220V Battery Discharging Tester

DC 110V/220V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Discharge voltage range88-264V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC110/220V Battery Discharging tester
Type: 3980-	H8082603	H8082606	H8082610	H8082620	H8082630
Discharge voltage range	88-264V
Discharge current	0-30A	0-60A	0-100A	0-200A	0-300A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

10-300V Battery Discharging Tester

DC 10-300V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Voltage monitoring rangeDC 0～300V
Discharge voltage range10-300V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC10-300V Battery Discharging tester
Voltage monitoring range	DC 0～300V
Discharge voltage range	10-300V
Discharge current	10-100A	0-120A	0-250A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

300-600V Battery Discharging Tester

DC 300-600V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Discharge voltage range300-600V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC300-600V Battery Discharging tester
Type: 3980-	H8306003	H8306004	H8306008
Discharge voltage range	300-600V
Discharge current	0～30A	0～40A	0～80A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

10-600V Battery Discharging Tester

DC 10-600V battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Voltage monitoring range0~600V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The 3980 and 3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

DC10-600V Battery Discharging tester
Voltage monitoring range	0~600V
Discharge voltage range	10~180V	180~300V	300~600V	10~180V	180~300V	300~600V
Discharge current	0~120A	0~80A	0~35A	0~300A	0~150A	0~60A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function(Optional)	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

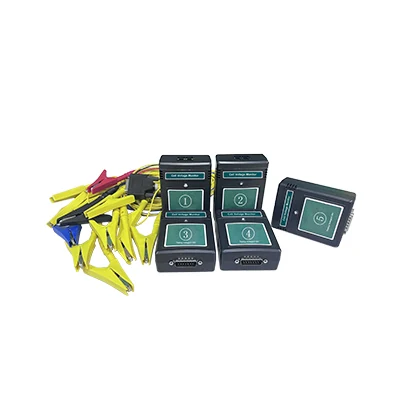

Wireless Battery Cell Monitoring Module – Model 2612

2612 battery cell voltage acquisition box is used to monitor several main parameters as battery terminal voltage, module voltage and internal resistance, which performs real-time monitoring of battery performance and state, analyzes the battery performance trend and judge battery service life. This module can effectively monitor the whole group of drop single battery and immediately issue alarm when it found serious deterioration of faulty batteries. These operations will provide the basis for battery pack inspection and maintenance.

Working voltageDC12V
Voltage measurement range1.5V～16V
Cell voltageCompatible with 2V, 4V, 6V, 12V optional
Voltage measurement accuracy0.1%

Request a Quote

Parameters

2612 Wireless Battery Cell Monitoring Module
Working voltage	DC12V
Voltage measurement range	1.5V～16V
Cell voltage	Compatible with 2V, 4V, 6V, 12V optional
Voltage measurement accuracy	0.1%
Voltage Resolution	0.01V
Number of connections	Maximum 25 connections per group (300 batteries)
Number of monitors per module	Each module supports up to 12 batteries for acquisition
Communication method	Wireless WiFi RF Communications
Sizes	35×71.5×98.75mm
Weights	0.15KG

Product Selection

Battery pack type	Battery Specifications	Number of modules required	Note
DC24V system	2V Cel	1	12 cells
DC24V system	12V Cell	1	2 cells
DC48V system	2V Cell	2	24 cells
DC48V system	12V Cell	1	4 cells
DC110V system	2V Cell	5	52-54 cells
DC110V system	12V Cell	1	9-10 cells
DC 220V system	2V Cell	9	104-108 cells
DC 220V system	12V Cell	2	16-18 cells
DC 380V system	2V Cell	16	192-196 cells
DC 380V system	12V Cell	3	30-32 cells
DC 480V system	2V Cell	20	238-240 cells
DC 480V system	12V Cell	4	40-42 cells

Features

Adopt LoRa wireless + RS485 wired transmission: compatible with 2V/6V/12V cell voltage monitoring. Each wireless monitoring module can simultaneously monitor 12 cells for easily operation.
Intelligent design of operation: equipped with insulation clamps, simple connection, automatic timed inspection of battery terminal voltage, automatic recording and intelligent analysis.
Module address using manual dialing code: module address without manual system number, directly through the external dialer to set up, convenient for troubleshooting and improve the efficiency of testing and maintenance.
Various acquisition methods: 1.Data transmission between the cell voltage acquisition box and the host of the discharger.

2.Data transmission between the cell voltage acquisition box and USB wireless terminal.

3.Data transmission among cell voltage acquisition box, host of discharge meter and USB wireless terminal.

Ultra-bandwidth monitoring function: a device to support 25 modules in series, the battery monitoring can up to 300 sections to meet the > 200 battery packs on-site operation.
Adopt full isolation circuit design: it is not interfered by the user’s equipment, nor affects the normal operation of the user’s equipment and battery pack.
Adopt multi-frequency band design: can set up 4 independent frequency bands, i.e., 4 sets of monitoring systems can be used in the same area to transmit data at the same time without interfering with each other or interfering with other’s channels.
Support data wireless viewing: cell battery voltage acquisition in real time and display in columnar graphic for easy viewing. It support cell battery health analysis and make a safety assessment.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Activator

Activators that combine discharge, intelligent charging and cyclic activation to recover capacity and reduce sulfation.

2 products

Battery Activator (Residual capacity test) – Model 3932

3932 lead acid battery activator fully utilizes the characters of high frequency, low voltage and high current to decompose the lead sulfate crystals adhered to the surface of battery plate in the role of directional current, which revert back to lead ions and realize the battery charge and repair. 3932 all-in-one terminal is used to perform constant current discharge,intelligent charge and cyclical charge & discharge, which can achieve the purpose of activation by cyclical & deep operation to active the battery activated substance.

Voltage range1.5～16V (2V/6V/12V)
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Voltage accuracy0.01V

Request a Quote

Description

The Battery Activator is designed for battery activation, recovery, and maintenance of industrial battery systems. It uses intelligent charge and discharge cycles to restore battery performance, reduce sulfation, and extend battery service life.

By applying controlled current and voltage, the battery activator helps reactivate inactive chemical materials inside the battery, improving capacity and performance. It is widely used for UPS battery maintenance, telecom battery systems, and power utility battery banks.

Compared with traditional battery charging equipment, a battery activator provides a more advanced solution for battery regeneration and performance recovery. It is often used together with a battery capacity tester and battery analyzer to form a complete battery maintenance solution.

This equipment helps engineers quickly identify weak batteries, restore battery capacity, and reduce replacement costs, making it an essential tool for battery maintenance service providers and industrial users.

Parameters

3932 Battery Activator
Voltage range	1.5～16V (2V/6V/12V)
Discharge range	1.7~～2.4V (2V)	5.4～7.2V (6V)	10.8～14.5V (12V)
Charge range	1.7～2.4V (2V)	5.4～7.2V (6V)	10.8～14.5V (12V)
Discharge current	0~100A	0~60A	0~30A
Charge current	1~100A	1~60A	1~30A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Voltage accuracy	0.01V
Discharge current accuracy	0.01A
Data storage	Internal 32G FLASH; External 16G storage
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	single-phase three-wire system: 220VAC (-20% ~ +30%), frequency: 45 ~ 65Hz
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Pack Charging & Discharging Activator – Model 3985

3985 battery pack activator is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A
Cell voltage display accuracy0.01V

Request a Quote

Description

The Battery Pack Charging & Discharging Activator is a specialized device that both charges and discharges lead-acid battery banks under controlled conditions, enabling accurate capacity evaluation and battery maintenance. It supports multi-stage charging (constant-current, constant-voltage, float/trickle) as well as controlled discharge tests, with real-time monitoring of voltage, current, and time. This tester logs data for analysis and provides safety protections (over-current, over-temperature, etc.) to ensure reliable operation. It is ideal for industrial UPS systems, telecom battery rooms, substations, and EV battery recycling scenarios where both charging and discharge testing are required.

Parameters

3985 Battery Charging & Discharging Tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32～60V	80～132V	176~270V	300～460V	380～580V
Charging voltage range	42~60V	95~150V	190～300V	300~480V	400~600V
Discharge current	0~300A	0~200A	0~100A	0~50A	0~40A
Charging current	1~100A	1~50A	1~50A	1~50A	1~50A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 16G TF storage, external 16G micro-USB card reader
Data communication	RS4853、USB1
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Charger

High-frequency three-stage chargers for activation charging and maintenance of lead-acid battery modules and banks.

5 products

48V Battery Charger

3970 48V battery charger is used to perform the high-current activation and supplemental power to the battery module. It sets constant current & voltage, and trickle three-stage charging modes by high-frequency charging characteristics to realize the effective activation charging for battery internal pole column, finally prolong the battery service life. So, it is definitely suitable for battery module maintenance operation.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Cell voltage display accuracy0.01V
Data storageInternal:32Gbit FLASH; External 16G storage

Request a Quote

Description

The lead acid battery charger is designed for efficient charging, activation, and maintenance of battery systems used in industrial applications. It supports constant current, constant voltage, and float charging modes to ensure safe and stable battery charging.

Using advanced high-frequency PWM technology, the charger delivers high efficiency and precise control of voltage and current. It can effectively restore battery performance, reduce sulfation, and extend battery service life.

This 48V battery charger is widely used in UPS battery systems, telecom base stations, substations, and energy storage applications. It supports high current output and wide voltage adaptability, making it suitable for large battery banks.

For complete battery maintenance solutions, the charger can be used together with a battery capacity tester and battery analyzer to achieve full battery diagnostics and performance evaluation.

Parameters

DC 48V Battery Charger
Model	CDY04806	CDY04812	CDY04818	CDY04820	CDY04830
Charging Voltage Range	40-57V			32-60V
Charging Current	0-60A	0-120A	0-180A	0-200A	0-300A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Cell voltage display accuracy	0.01V
Data storage	Internal:32Gbit FLASH; External 16G storage
Data communication	RS485、USB
Working mode	Constant current, constant voltage, and trickle three-stage
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

110V/144V Battery Charger

3970 110V/144V battery charger is used to perform the high-current activation and supplemental power to the battery module. It sets constant current & voltage, and trickle three-stage charging modes by high-frequency charging characteristics to realize the effective activation charging for battery internal pole column, finally prolong the battery service life. So, it is definitely suitable for battery module maintenance operation.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Cell voltage display accuracy0.01V
Data storageInternal:32Gbit FLASH; External 16G storage

Request a Quote

Description

This battery charger is widely used in UPS battery systems, telecom base stations, substations, and energy storage applications. It supports high current output and wide voltage adaptability, making it suitable for large battery banks.

For complete battery maintenance solutions, the charger can be used together with a battery capacity tester and battery analyzer to achieve full battery diagnostics and performance evaluation.

Parameters

DC110V /144V Battery Charger
Model	CDY15002	CDY15004	CDY15006	CDY15010	CDY15020
Charging Voltage Range	96-160V			60-200V
Charging Current	0-20A	0-40A	0-60A	0-100A	0-200A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Cell voltage display accuracy	0.01V
Data storage	Internal:32Gbit FLASH; External 16G storage
Data communication	RS485、USB
Working mode	Constant current, constant voltage, and trickle three-stage
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

480V Battery Charger

3970 480V battery charger is used to perform the high-current activation and supplemental power to the battery module. It sets constant current & voltage, and trickle three-stage charging modes by high-frequency charging characteristics to realize the effective activation charging for battery internal pole column, finally prolong the battery service life. So, it is definitely suitable for battery module maintenance operation.

Charging Voltage Range400V-600V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Cell voltage display accuracy0.01V

Request a Quote

Description

For complete battery maintenance solutions, the charger can be used together with a battery capacity tester and battery analyzer to achieve full battery diagnostics and performance evaluation.

Parameters

DC 480V Battery Charger
Model	CDY48001	CDY48003	CDY48005
Charging Voltage Range	400V-600V
Charging Current	0-10A	0-30A	0-50A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Cell voltage display accuracy	0.01V
Data storage	Internal:32Gbit FLASH; External 16G storage
Data communication	RS485、USB
Working mode	Constant current, constant voltage, and trickle three-stage
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

2-300V Battery Charger

3970 2-300V battery charger is used to perform the high-current activation and supplemental power to the battery module. It sets constant current & voltage, and trickle three-stage charging modes by high-frequency charging characteristics to realize the effective activation charging for battery internal pole column, finally prolong the battery service life. So, it is definitely suitable for battery module maintenance operation.

Charging Voltage Range2~300V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Cell voltage display accuracy0.01V

Request a Quote

Description

For complete battery maintenance solutions, the charger can be used together with a battery capacity tester and battery analyzer to achieve full battery diagnostics and performance evaluation.

Parameters

DC 2-300V Battery Charger
Charging Voltage Range	2~300V
Charging Current	1~20A	1~60A	1~120A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Cell voltage display accuracy	0.01V
Data storage	Internal:32Gbit FLASH; External 16G storage
Data communication	RS485、USB
Working mode	Constant current, constant voltage, and trickle three-stage
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

2-600V Battery Charger

3970 2-600V battery charger is used to perform the high-current activation and supplemental power to the battery module. It sets constant current & voltage, and trickle three-stage charging modes by high-frequency charging characteristics to realize the effective activation charging for battery internal pole column, finally prolong the battery service life. So, it is definitely suitable for battery module maintenance operation.

Charging Voltage Range2-600V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Cell voltage display accuracy0.01V

Request a Quote

Description

For complete battery maintenance solutions, the charger can be used together with a battery capacity tester and battery analyzer to achieve full battery diagnostics and performance evaluation.

Parameters

DC 2-600V Battery Charger
Charging Voltage Range	2-600V
Charging Current	1~30A	1~60A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Cell voltage display accuracy	0.01V
Data storage	Internal:32Gbit FLASH; External 16G storage
Data communication	RS4853、USB1
Working mode	Constant current, constant voltage, and trickle three-stage
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Capacity Tester

Instruments for rapid, residual and accurate capacity testing to decide whether batteries should be kept, repaired or replaced.

5 products

CP-F600 Lithium Battery Pack Discharge Tester

CP-F series is used to perform quick discharging in battery dismantling, storage, transportation, repair, recycling of battery manufacturers and car factory etc., which is the ideal equipment to reduce the risk of battery storage and transportation.

Power supply220V/AC±15% 50Hz
Display7inch LCD touch screen,1024*600
Voltage accuracy+0.5%FS@600V
Current accuracy±1%FS@100A; Resolution: 0.01A

Request a Quote

Parameters

Model Name	CP-F600
	DC 10~600V
Max. output power	15KW	30KW
Discharging current range	300V: Max50A 600V:Max25A	300V:Max100A 600V:Max50A
Power supply	220V/AC±15% 50Hz
Display	7inch LCD touch screen,1024*600
Voltage accuracy	+0.5%FS@600V
Current accuracy	±1%FS@100A; Resolution: 0.01A
Working modes	Constant current and constant power discharge
Environment	Working temperature:-10~65℃, Humidity:0~90%,Altitude:<4000m
Emergency protection	Equip with external open circuit breaker
Heat dissipation	Air cooling

Overview

Features

Wide voltage design: compatible with different battery PACK voltage ranges for discharge, one machine for multiple uses.
Multi-mode discharge: supports constant current discharge and constant power discharge modes, and can simulate various load conditions for battery pack tests.
Intelligent operation: simple operation, one-button discharge, efficient and intelligent, ensuring the safety of the discharge process.
Portable design: lightweight and portable, suitable for different occasions, meeting the needs of different types of customers.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

CP-F800 Lithium Battery Pack Discharge Tester

Voltage rangeDC 10~800V
Power supply220V/AC±15% 50Hz
Display7inch LCD touch screen,1024*600
Voltage accuracy+0.5%FS@800V; Resolution: 0.01V

Request a Quote

Parameters

Model Name	CP-F800
Voltage range	DC 10~800V
Max. output power	20KW	40KW
Discharging current range	0~50A (MAX)	0~100A (MAX)
Power supply	220V/AC±15% 50Hz
Display	7inch LCD touch screen,1024*600
Voltage accuracy	+0.5%FS@800V; Resolution: 0.01V
Current accuracy	±1%FS; Resolution: 0.01A
Working modes	Constant current and constant power discharge
Environment	Working temperature:-10~65℃, Humidity:0~90%,Altitude:<4000m
Emergency protection	Equip with external open circuit breaker
Heat dissipation	Air cooling

Overview

Features

Wide voltage design: compatible with different battery PACK voltage ranges for discharge, one machine for multiple uses.
Multi-mode discharge: supports constant current discharge and constant power discharge modes, and can simulate various load conditions for battery pack tests.
Intelligent operation: simple operation, one-button discharge, efficient and intelligent, ensuring the safety of the discharge process.
Portable design: lightweight and portable, suitable for different occasions, meeting the needs of different types of customers.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Also listed in this category: Battery Analyzer (Rapid capacity test) – Model 3915 · Battery Activator (Residual capacity test) – Model 3932 · Battery Discharging Tester (Accurate capacity test) – Model 3980

Battery Charge Discharge Tester

All-in-one testers that discharge, recharge and activate battery banks with wireless cell-voltage monitoring.

9 products

Battery Charging and Discharging Tester – Model 3985

3985 multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A
Data communicationRS485、USB

Request a Quote

Description

The Battery Charging and Discharging Tester is a specialized device that both charges and discharges lead-acid battery banks under controlled conditions, enabling accurate capacity evaluation and battery maintenance. It supports multi-stage charging (constant-current, constant-voltage, float/trickle) as well as controlled discharge tests, with real-time monitoring of voltage, current, and time. This tester logs data for analysis and provides safety protections (over-current, over-temperature, etc.) to ensure reliable operation. It is ideal for industrial UPS systems, telecom battery rooms, substations, and EV battery recycling scenarios where both charging and discharge testing are required.

Parameters

3985 Battery Charging & Discharging Tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32-60V	88-132V	176-270V	300-460V	380-580V
Discharge current	0-300A	0-200A	0-100A	0-50A	0-40A
Charge voltage range	42-60V	95-150V	190-300V	300-480V	450-600V
Charge current	1-100A	1-50A	1-50A	1-50A	1-50A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

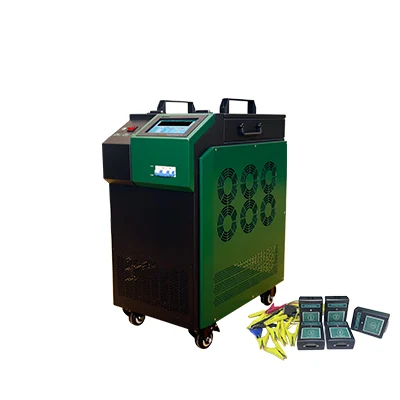

Battery Charging and Discharging Tester – Model 3986

3986 multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display0.1A
Cell voltage display accuracy0.01V

Request a Quote

Description

Parameters

3986 Battery Charging & Discharging Tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32-60V	88-132V	176-270V	300-460V	380-580V
Discharge current	0-300A	0-200A	0-100A	0-50A	0-40A
Charge voltage range	42-60V	95-150V	190-300V	300-480V	450-600V
Charge current	1-100A	1-50A	1-50A	1-50A	1-50A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 16G TF storage, external 16G micro-USB card reader
Data communication	RS4853、USB1
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

48V Battery Charging & Discharging Tester

DC 48V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Discharge voltage range10-60V
Charging voltage range2-60V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A

Request a Quote

Description

Parameters

DC 48V Battery Charging & Discharging Tester
Discharge voltage range	10-60V
Discharge current	0～100A	0～100A	0～150A	0～200A	0～300A
Charging voltage range	2-60V
Charging current	1～50A	1～100A	1～100A	1～200A	1～300A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitor. Each monitor module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

220V Battery Charging & Discharging Tester

DC 220V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring rangeDC0~300V
Discharge voltage range88-270V
Charging voltage range190~270V
Voltage measurement accuracy±0.5%FS+0.1V

Request a Quote

Description

Parameters

DC 220V Battery Charging & Discharging Tester
Voltage monitoring range	DC0~300V
Discharge voltage range	88-270V
Discharge current	0-30A	0-100A	0-100A
Charging voltage range	190~270V
Charging current	1-20A	1-50A	1-100A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G USB Disk
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V/AC380V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

110V / 220V Battery Charging & Discharging Tester

DC 110V/220V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring rangeDC0-300V
Discharge voltage range88-270V
Charging voltage range190-270V
Voltage measurement accuracy±0.5%FS+0.1V

Request a Quote

Description

Parameters

DC110V/220V Battery Charging & Discharging Tester
Voltage monitoring range	DC0-300V
Discharge voltage range	88-270V
Discharge current	0-100A	0-100A
Charging voltage range	190-270V
Charging current	1-50A	1-100A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

10-120V Battery Charging & Discharging Tester

DC10-120V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring rangeDC0-150V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Parameters

DC10-120V Battery Charging & Discharging Tester
Voltage monitoring range	DC0-150V
Charge/Discharge voltage range	10-120V	10-120V
Discharge current	0-50A	0-100A
Charging current	1-50A	1-100A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G USB Disk
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

10-300V Battery Charging & Discharging Tester

DC10-300V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring rangeDC0-300V
Voltage measurement accuracy±0.5%FS+0.1V
Current measurement accuracy±1%FS+0.1A
Discharge current display accuracy0.1A

Request a Quote

Description

Parameters

DC10-300V Battery Charging & Discharging Tester
Voltage monitoring range	DC0-300V
Discharge current	0-80A	0-120A	0-120A
Charging current	1-60A	1-60A	1-120A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

176-456V Battery Charging & Discharging Tester

DC176-456V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring rangeDC0-600V
Discharge voltage range176~456V
Discharge current0~50A
Charging voltage range90~520V

Request a Quote

Description

Parameters

DC176-450V Battery Charging & Discharging Tester
Voltage monitoring range	DC0-600V
Discharge voltage range	176~456V
Discharge current	0~50A
Charging voltage range	90~520V
Charging current	1-50A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitor. Each monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

10-600V Battery Charging & Discharging Tester

DC10-600V multi-purpose intelligent battery charging and discharging tester is used to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for battery and UPS power maintenance.

Voltage monitoring range0-600V
Discharge voltage range10～600V
Charging voltage range2~600V
Voltage measurement accuracy±0.5%FS+0.1V

Request a Quote

Description

Parameters

DC10-600V Battery Charging & Discharging Tester
Voltage monitoring range	0-600V
Discharge voltage range	10～600V
Discharge current	0～25A	0～50A
Charging voltage range	2~600V
Charging current	1～30A	1～60A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge display accuracy	0.1A
Cell voltage display accuracy	0.01V
Cell voltage monitoring function	Communication distance up to 100 m or more,Compatible with 2V/4V/6V/12V single battery voltage monitoring. Each wireless monitoring module can monitor 12 cells at the same time,the high limit can monitor 300 batteries.
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	Supply voltage: AC 220V (-20%～+30%), frequency: 45～65Hz. Charging input: AC220V (-20%~+30%)
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Battery Online Monitor System

Permanent online monitoring of cell voltage, internal resistance, temperature and string current with alarms and reports.

1 product

Battery online monitoring system – Model 3920

3920 battery online monitoring system perform a full range of monitoring for DC screen backup power supply for a full range of monitoring, including internal resistance test, pole temperature test, single-voltage monitoring, group-end charging and discharging voltage, current monitoring and intelligent analysis and management. The battery safety hazards can be found during operation in time. The long-term monitoring of batteries can be an effective way to prolong the life of the battery to ensure that the deterioration of batteries for the early detection. Meanwhile, the system can track the performance balance of battery, when the faulty batteries in a serious deterioration performance be found, the system will immediately alarm and can be the basis for the battery pack “fine” maintenance. The the batteries can be replaced before running out of power, which can reduce the risk of battery failure and save money.

Voltage measurement accuracy±0.3%
Internal Resistance Measurement Accuracy and Resolution±2%, Resolution:0.01mΩ
Current measurement range and accuracy0～1000A;±1%, resolution 0.1A
Input PowerAC100～240V or DC48\DC220

Request a Quote

Parameters

3920
Cell voltage	Cell Voltage Measurement Range	0~16V
Cell voltage	Voltage measurement accuracy	±0.3%
Cell internal resistance	Measurement range	0～32000μΩ
Cell internal resistance	Internal Resistance Measurement Accuracy and Resolution	±2%, Resolution:0.01mΩ
Group End Module	Voltage measurement range	0～600V
	Voltage measurement accuracy	±0.5%
	Current measurement range and accuracy	0～1000A;±1%, resolution 0.1A
Temperature collection	Temperature measurement and accuracy	±10℃+85℃;Accuracy:±1℃
Communication method	Inside	RS485/TCP/USB
History Search	Alarm data and historical records of voltage, internal resistance, capacity, group voltage and current, and monthly analysis report can be queried.	Automatic control by on-site host Remote center control is also possible
Input Power	AC100～240V or DC48\DC220
Input Insulation Resistance	≥10MΩ, 600V
Working environment	Environmental temperature	0~40℃
Working environment	Relative humidity	<85%

Features

System fault tolerance The system does not have any interference to the UPS charging system and working circuit. The voltage acquisition line is not directly connected to the monitored battery, and the middle is connected by ohmic resistor, which eliminates the dangers of self-discharge of the battery, sparks on the scene, electrocution of the personnel, and injury of the battery brought by the short circuit of the measurement cable itself or the failure of the module.

The detection channels of the acquisition unit adopt high impedance input mode, and the current of the detection circuit is less than microampere level, which has no adverse effect on the battery.

The system can work independently of the monitored equipment, low power consumption, low requirements for the power supply system, does not affect the user’s normal power supply line

Anti-over voltage, over current and high-frequency magnetic field interference

The system is required to have a wide operating voltage range, strong prevention capability for over current and voltage , and design with anti-surge circuits to normal operation under high-frequency and strong magnetic field working environments.

Online maintenance The system adopts modular design, good independence between modules, strong online maintainability. Online maintenance does not affect the normal work of the monitored equipment.
Flame retardancy The system use components with good flame-retardant characteristics so that malfunctions caused by short-circuits and over currents in the system itself will not cause open flame burning.
Explosion-proof The system use relays in good performance, no channel switching sparks, and no contact connecting devices that generate open flames.
Display intuition 7-inch touch screen and monitoring host integrated design, easy to install, real-time data view, can also be read through the background.
Intelligent operation The module adopts automatic numbering, the data can be exported locally and in the background, and intelligent integrated maintenance.
Strong anti-interference The internal resistance test adopts the Kelvin four-terminal AC injection method, the test frequency is dynamically adjusted according to the UPS parameters, and the high anti-interference internal resistance value is not interfered by the UPS ripple.
Line separation design Adopt 6-core acquisition line, voltage, internal resistance and temperature are independent channels without interfering with each other, which improves the stability of testing.
Self-calibration function The instrument is equipped with internal resistance calibration and correction function, which can calibrate and correct the measured value to ensure the measurement accuracy.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Need Help Choosing the Right Battery Test Equipment?

Send us your battery type, system voltage, capacity and test requirements, and our engineers will recommend the right configuration.
