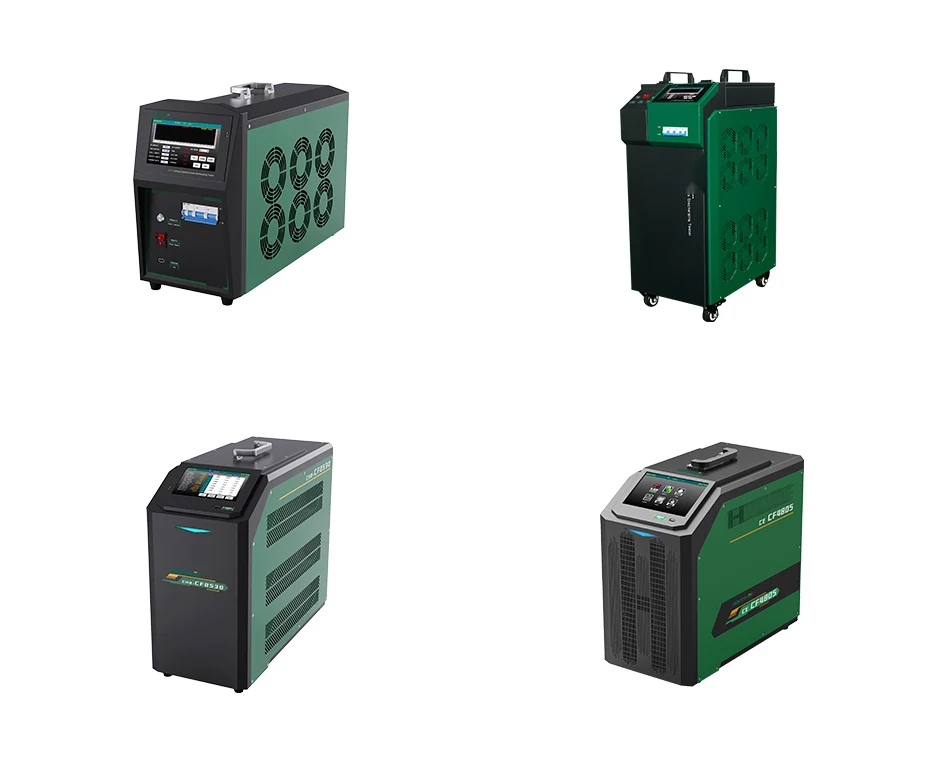

Recycle / Disassemble Tester

Equipment for safe discharge, cell screening and equalization of retired and second-life battery packs before dismantling, storage, transport or reuse, reducing handling risk and increasing recovered value.

Browse Products Request a Quote

Products5
Categories1
SupportSupply & Training

Overview

Typical Applications

Battery recycling and dismantling lines
Second-life battery rehabilitation
Safe storage and transport preparation
Cell screening and grading

Products

5 products

CE-CF0530-8C Lithium Battery Multichannel Tester

CE-CF series is used to perform the repair and maintenance of voltage difference for module cell, which can completely solve the issue of battery capacity degradation via manual & automatic two-way maintenance. This series is especially designed for guaranteeing the battery safety performance , extending the battery life, and reducing the cost of battery repair and replacement.

Voltage rangeDC 1.000～5.000V
Voltage accuracy0.1%FS+1mV; Resolution 0.001V
Current accuracy±0.5%FS±10mA Resolution 0.01A
Data communicationRS485、USB

Request a Quote

Series	CE-CF0530-4C	CE-CF0530-8C
The No. Of Channels	4	8
Voltage range	DC 1.000～5.000V
Voltage accuracy	0.1%FS+1mV; Resolution 0.001V
Current range	0-30A*4	0-30A*8
Current accuracy	±0.5%FS±10mA Resolution 0.01A
Data communication	RS485、USB
Working Voltage	AC220V
Channel connection	Each channel works independently, in combination, or with current superposition.
Automatic	Discharging, Charging, Equalizing
Display	7-inch touch screen, displays real-time single-unit status information, fault display, and operating status
Protection	Under-voltage, over-voltage, over-current, over-temperature, short circuit, disconnection and other

Overview

Features

Accurate sampling in real time

The voltage and current are sampled separately for scientific design.

Wide voltage & customized current

Wide voltage range design to compatible for different lithium battery bank testing, and the charging & discharging current can be customized.

Support cyclic charging & discharging mode

Effectively improve the capacity and usage times of the battery.

Safety operation

Supports cell voltage and temperature data acquisition and setting, ensuring a safer charging & discharging process.

Intelligent tracking

Data recording for maintenance data tracking all the time.

Humanized design

intelligent design and humanized user interface for easy operation.

Multi conditions to issue sound and light alarms

Reverse polarity, over-temperature, over-current, under-voltage, over-voltage, short-circuit emergency stop, etc.

Battery cell voltage and temperature acquisition function

Equip with cell monitoring module or customized protocol converter board

Application Market

Quickly repair the pressure difference, restore the endurance, and reduce the replacement cost of 4S stores.

Optimize the consistency of the battery pack, improve the energy storage efficiency, and extend the service life.

Recycling Battery Rehabilitation

Balance retired batteries and increase the value of secondary use.

Battery manufacturer aftermarket testing

Efficiently troubleshoot problem cells and improve after-sales response speed.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

CP-F600 Lithium Battery Pack Discharge Tester

CP-F series is used to perform quick discharging in battery dismantling, storage, transportation, repair, recycling of battery manufacturers and car factory etc., which is the ideal equipment to reduce the risk of battery storage and transportation.

Power supply220V/AC±15% 50Hz
Display7inch LCD touch screen,1024*600
Voltage accuracy+0.5%FS@600V
Current accuracy±1%FS@100A; Resolution: 0.01A

Request a Quote

Parameters

Model Name	CP-F600
	DC 10~600V
Max. output power	15KW	30KW
Discharging current range	300V: Max50A 600V:Max25A	300V:Max100A 600V:Max50A
Power supply	220V/AC±15% 50Hz
Display	7inch LCD touch screen,1024*600
Voltage accuracy	+0.5%FS@600V
Current accuracy	±1%FS@100A; Resolution: 0.01A
Working modes	Constant current and constant power discharge
Environment	Working temperature:-10~65℃, Humidity:0~90%,Altitude:<4000m
Emergency protection	Equip with external open circuit breaker
Heat dissipation	Air cooling

Overview

Features

Wide voltage design: compatible with different battery PACK voltage ranges for discharge, one machine for multiple uses.
Multi-mode discharge: supports constant current discharge and constant power discharge modes, and can simulate various load conditions for battery pack tests.
Intelligent operation: simple operation, one-button discharge, efficient and intelligent, ensuring the safety of the discharge process.
Portable design: lightweight and portable, suitable for different occasions, meeting the needs of different types of customers.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

CP-F800 Lithium Battery Pack Discharge Tester

Voltage rangeDC 10~800V
Power supply220V/AC±15% 50Hz
Display7inch LCD touch screen,1024*600
Voltage accuracy+0.5%FS@800V; Resolution: 0.01V

Request a Quote

Parameters

Model Name	CP-F800
Voltage range	DC 10~800V
Max. output power	20KW	40KW
Discharging current range	0~50A (MAX)	0~100A (MAX)
Power supply	220V/AC±15% 50Hz
Display	7inch LCD touch screen,1024*600
Voltage accuracy	+0.5%FS@800V; Resolution: 0.01V
Current accuracy	±1%FS; Resolution: 0.01A
Working modes	Constant current and constant power discharge
Environment	Working temperature:-10~65℃, Humidity:0~90%,Altitude:<4000m
Emergency protection	Equip with external open circuit breaker
Heat dissipation	Air cooling

Overview

Features

Wide voltage design: compatible with different battery PACK voltage ranges for discharge, one machine for multiple uses.
Multi-mode discharge: supports constant current discharge and constant power discharge modes, and can simulate various load conditions for battery pack tests.
Intelligent operation: simple operation, one-button discharge, efficient and intelligent, ensuring the safety of the discharge process.
Portable design: lightweight and portable, suitable for different occasions, meeting the needs of different types of customers.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

CE-CF0530 Lithium Battery Cell Charging &Discharging Tester

CE-CF0530 adopts high-frequency power supply design to realize rapid charging and discharging maintenance of lithium battery cell. To be with battery cell capacity screening, SOC adjustment function, it is a high cost-effective cell maintenance equipment.

Power supplyAC100~264V/ 50Hz
Voltage Test RangeDC1V-5V
Charging current range1~30A±0.5%FS+0.1A@30A continuously adjustable
Charging modeConstant current, constant voltage

Request a Quote

Model Name	CE-CF0530
Power supply	AC100~264V/ 50Hz
Voltage Test Range	DC1V-5V
Charging current range	1~30A±0.5%FS+0.1A@30A continuously adjustable
Charging mode	Constant current, constant voltage
Discharge current range	0~30A continuously adjustable
Discharging mode	Constant current, constant power
Voltage accuracy/Resolution	+0.2%FS+5Mv@5V; resolution: 0.001V
communication interface	RS485/USB
Working temperature	-10~65℃
Storage temperature	-40~75℃
protective measure	Input under-voltage, over-voltage protection, battery reverse polarity protection, output over-current protection, equipment over-temperature protection, etc.
Heat dissipation	Air cooling

Overview

Features

Various kind of maintenance modes: Industry leading charging& discharging modes as constant current/voltage for charging, constant current/power for discharging.
Wide application field : covers the maintenance of mainstream lithium batteries in the market.Support voltage & capacity termination,and power calculation.
High performance testing : Voltage and current sampling line isolation design for more accurate testing, the charging & discharging current is adjustable to realize efficient maintenance.
Safety operation: Provide various testing termination thresholds to avoid overcharging & discharging, ensuring the safety of battery and testing equipment.
Compact size: Small size and light weight, easy to carry.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

CE-CF48 Lithium Battery Equalizing Tester

CE-CF series is used to perform the repair and maintenance of voltage difference for module cell, which can completely solve the issue of battery capacity degradation via manual & automatic two-way maintenance. This series is especially designed for guaranteeing the battery safety performance, extending the battery life, and reducing the cost of battery repair and replacement.

Power supply220V/AC ±15% 50Hz
Voltage rangeDC1.000V~5.000V
Current range0~5A adjustable
Display7 inch LCD touch screen

Request a Quote

Description

This Lithium Battery Equalizing Tester Series includes professional battery maintenance equipment designed for lithium battery cell testing, balancing, activation, and maintenance. The equipment supports constant current charging, constant voltage charging, constant current discharging, and constant power discharging.

These testers are widely used for:

Battery cell balancing after battery pack replacement
Battery capacity grading and screening
SOC balancing before battery pack assembly
Routine maintenance of lithium battery packs
Battery performance testing and lifecycle testing

With high-precision voltage and current control, the equalizing tester ensures each battery cell operates within safe limits, improving battery pack consistency and extending overall battery service life.

Parameter

Model Name	1205	2405	2605	3605	4805	5205	6005	7205
Channels/CH	cell *12	cell *24	cell *26	cell *36	cell *48	cell *52	cell *60	cell *72
Power supply	220V/AC ±15% 50Hz
Voltage range	DC1.000V~5.000V
Current range	0~5A adjustable
Maintenance modes	Parallel charging, parallel discharging, equalization & maintenance
Display	7 inch LCD touch screen
Voltage accuracy	5V@+0.05%FS±1mV
Current accuracy	5A@±0.5%FS±10mA
Temperature	-10~65C@+2C
Connection modes	Reverse (negative), sequence (positive)
External communication	RS485/USB
Heat dissipation	Air cooling
Protection direction	Cross-connection, leakage, reverse connection, under-voltage, over-voltage

Functional Characteristics

Various kind of maintenance modes: replenishment, discharging and equalizing , which is convenient to use in different working conditions.
Battery testing template presetting : covers the maintenance of mainstream lithium batteries in the market.
High performance equalizing: the maintenance process supports end depolarization, which guarantees a highly consistent effect after equalization.
Independent channels design: without interfering with each other, ensuring that each battery cell will not be over-charged & discharged.
Compact size: Easy to carry, the equipment supports 1~6 channels to expand, and a single channel supports 12 strings of battery cells’equalization at the same time.

Unique Advantage

Stable repair: Control accuracy that meets industry standards ensures long-term stability of the balancing effect.

Flexible and efficient: Modular design + expansion function, suitable for battery packs as small as 12 strings and as large as 72 strings.

Smart and worry-free: Preset templates + automatic mode, lower the operating threshold and improve maintenance efficiency.

Analysis of application Scenarios and necessity

Battery manufacturer after-sales service

Demand characteristics: The pressure difference problem of the factory battery pack needs to be quickly repaired to reduce the return rate.
Product adaptation: High-precision balancing + data recording function, accurately locate the problem battery cell, and provide a basis for after-sales report.
Necessity: Avoid the overall scrapping of batch battery packs due to differences in monomers, and reduce the manufacturer’s losses.

Automobile factory / 4S shop maintenance

Demand characteristics: Quickly solve the problem of reduced battery life of electric vehicles and improve customer satisfaction.
Product adaptation: One-click operation, complete parameter setting in 10 minutes, and support multi-model battery template call.
Necessity: Reduce vehicle battery replacement costs, extend battery life during the warranty period, and maintain brand reputation.

Energy storage power station maintenance

Demand characteristics: Large-scale battery packs need to be balanced regularly to prevent thermal runaway risks.
Product adaptation: Flexible configuration of 1~6 channels, single maintenance covers multiple groups of batteries, and supports parallel connection to improve current efficiency.
Necessity: Ensure the stability of the energy storage system and avoid safety accidents caused by pressure difference accumulation.

Battery warehouse management

Demand characteristics: After long-term storage, the voltage consistency of inventory batteries decreases and needs to be activated for maintenance.
Product adaptation: The balanced mode automatically repairs the voltage difference and supports operation in low temperature environments (-20℃~50℃).
Necessity: Improve the availability of inventory batteries and reduce resource waste.

Specifications may vary by configuration; final technical data is confirmed in the quotation.

Need Help Choosing the Right Battery Test Equipment?

Send us your battery type, system voltage, capacity and test requirements, and our engineers will recommend the right configuration.
