GNSS Products / Toknav Rugged & GIS Devices

Toknav Rugged & GIS Devices

Rugged Toknav data controllers and portable RTK receivers for GIS collection, utility inspection, asset inventory, road mapping, survey support, and mobile positioning.

BrandToknav
Products5
AgentEnmatech

Product Guide Built From The Local Catalogs

This category connects robust Android field controllers with pocket-sized RTK receivers. The Rugged & GIS catalog highlights IP-rated controllers, long battery life, SIM and wireless communication, and portable RTK devices for centimeter-level GIS positioning.

Each product below connects the page content to the matching local catalog, user guide, image, or video stored in the website assets. Technical details should always be confirmed against the attached manufacturer PDF before procurement.

Project Support

Model selection and configuration review.
Catalog, user-guide, and accessory planning.
Setup, handover, and operator orientation.

Products And Details

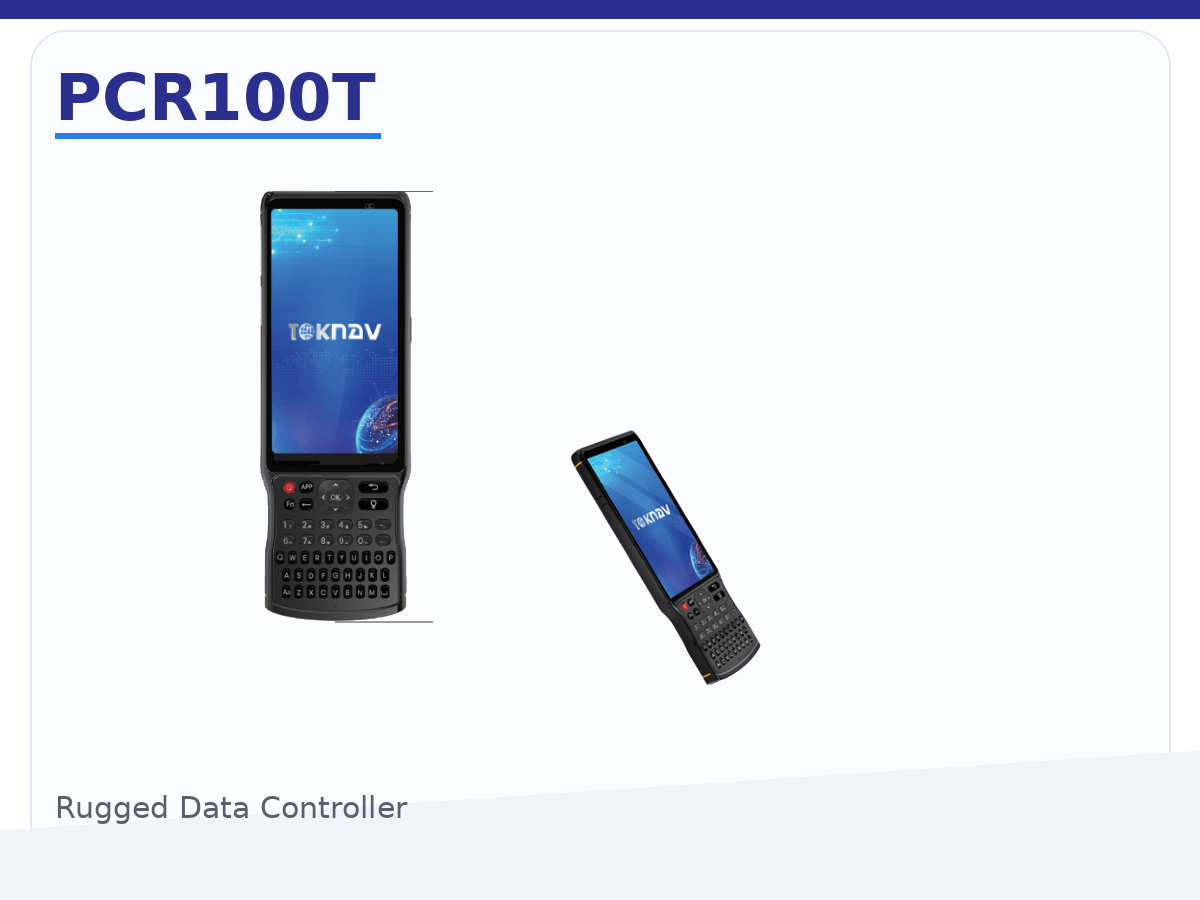

PCR100T Data Controller

Android rugged controller for field survey, GIS data capture, and receiver operation.

Android 11 product line entry in the Rugged & GIS catalog.
IP68 rugged protection and professional field communication methods.
Used for receiver setup, data capture, and mobile project workflows.

Source: Rugged & GIS catalog.

Catalog

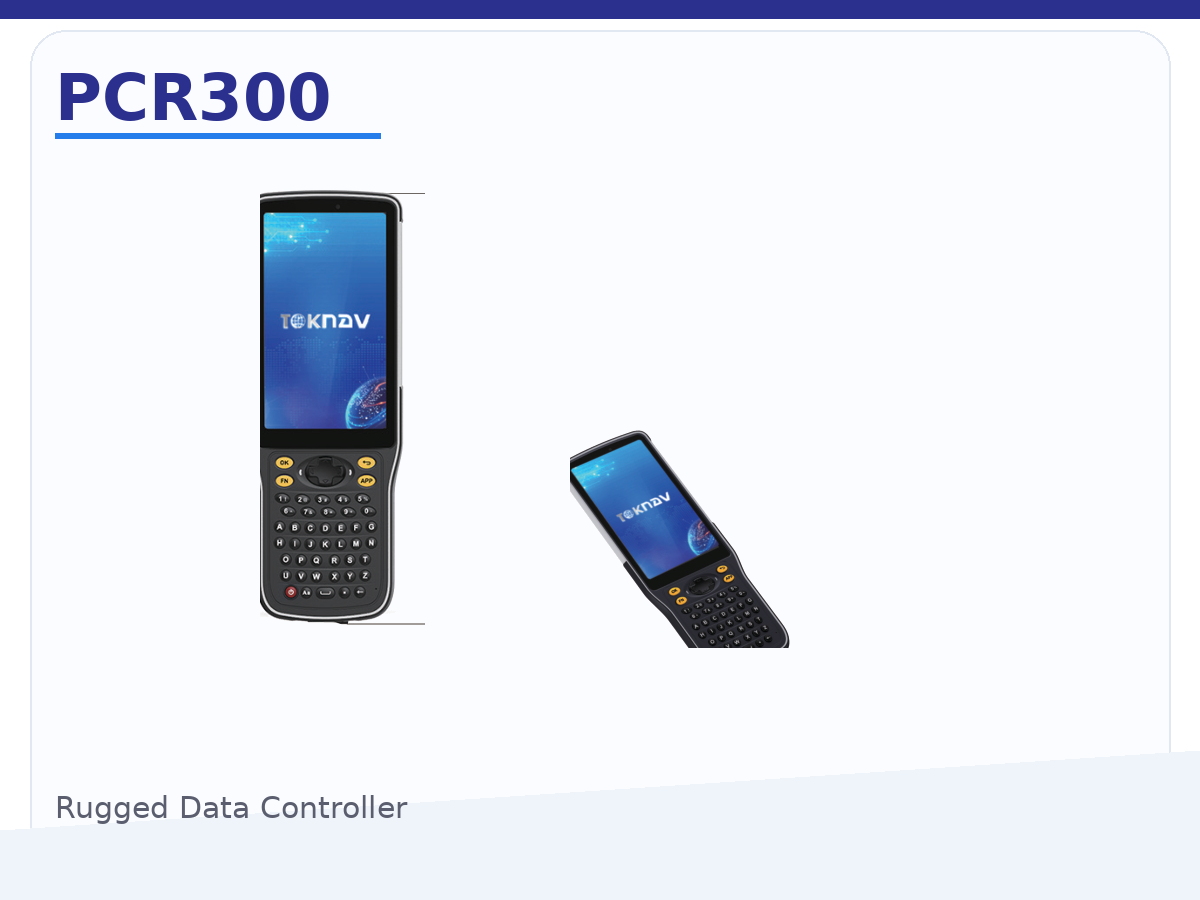

PCR300 Data Controller

Rugged handheld controller for one-handed GIS and survey field work.

Android 9 product line entry with IP67 certification in the catalog.
Dual SIM, digital keypad, and replaceable battery concept.
Designed for field reliability outside office environments.

Source: Rugged & GIS catalog.

Catalog

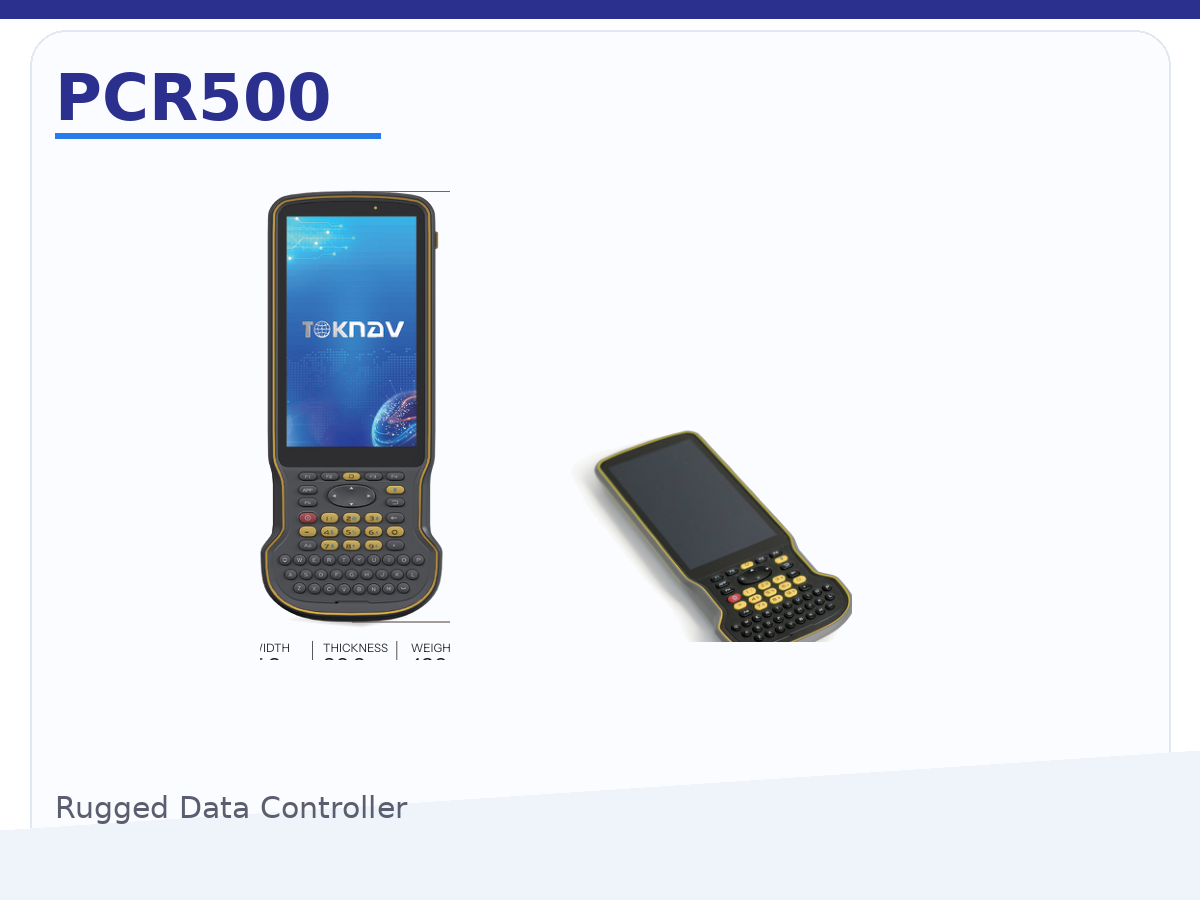

PCR500 Data Controller

Higher-capacity Android field controller for demanding Toknav GNSS projects.

Android 12 and Qualcomm SM6115 platform in the extracted catalog text.
Bluetooth 5.0, dual-band WiFi, 4G modem, and 9000mAh battery.
Catalog text lists working time up to 22 hours and IP68 protection.

Source: Rugged & GIS catalog.

Catalog

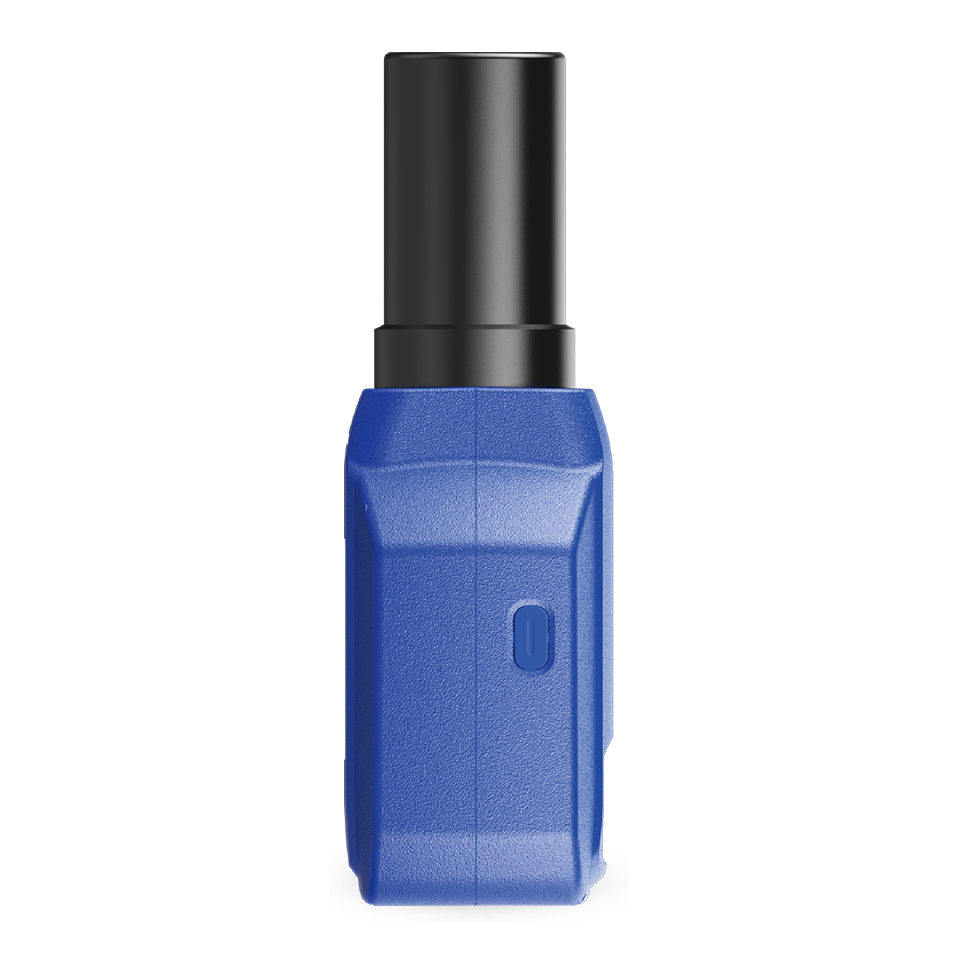

P8 / P8Pro Portable RTK Receiver

Compact BDS/GNSS positioning terminal for portable centimeter-level mapping.

1408 channels and centimeter-level positioning in the existing page content.
Bluetooth and 4G CAT1 communication for compact RTK workflows.
P8Pro supports high-precision inertial navigation tilt compensation.

Source: P8/P8Pro catalog and quick user guide.

Catalog Quick Guide Video

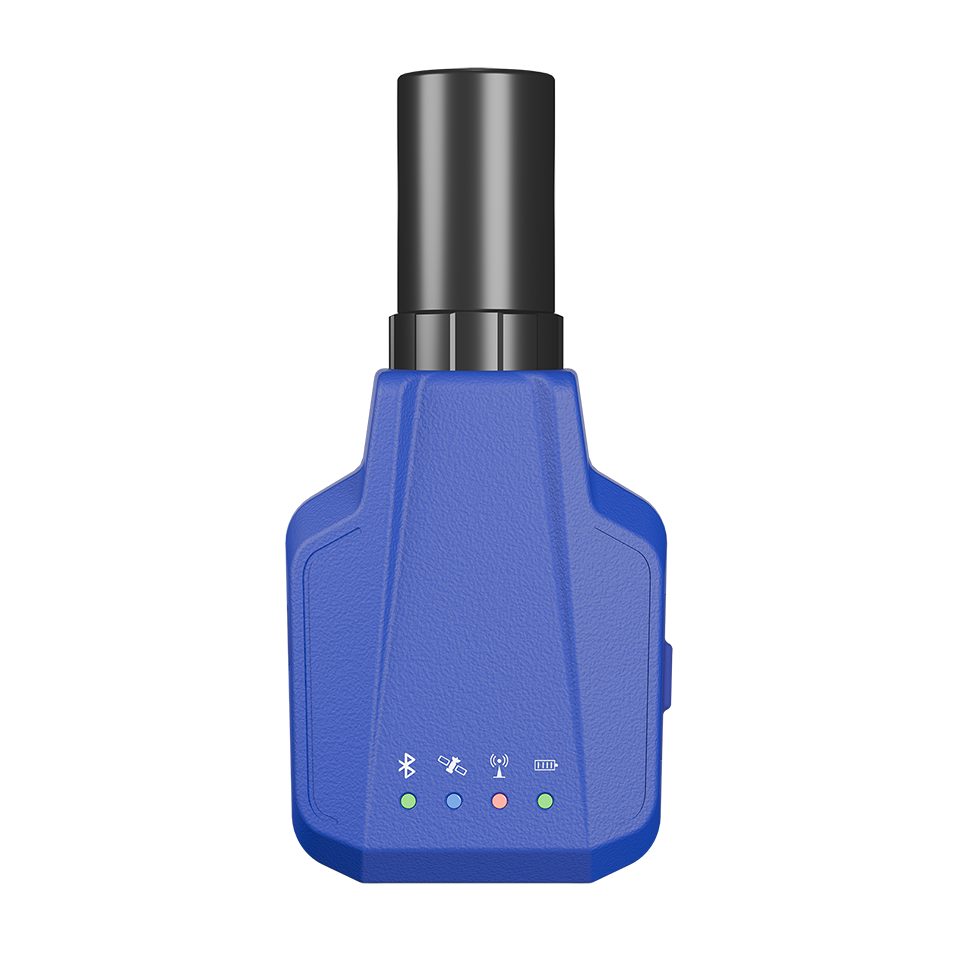

P8Global Portable RTK Receiver

Full-band portable RTK receiver for global high-precision field positioning.

1408 channels for BDS, GPS, GLONASS, Galileo, QZSS, SBAS, and NavIC signals.
Only 176 g with a built-in 2500mAh battery and more than 12 hours working time.
Supports 4G full-band modem, Bluetooth, cloud monitoring, and PPP capability.

Source: P8Global Portable RTK Receiver catalog.

Catalog Product PDF

Product Media

Need a Toknav GNSS configuration?

Send the project scope, accuracy target, correction method, and site environment. Enmatech Global will help match the correct receiver, antenna, controller, software, and accessories.
